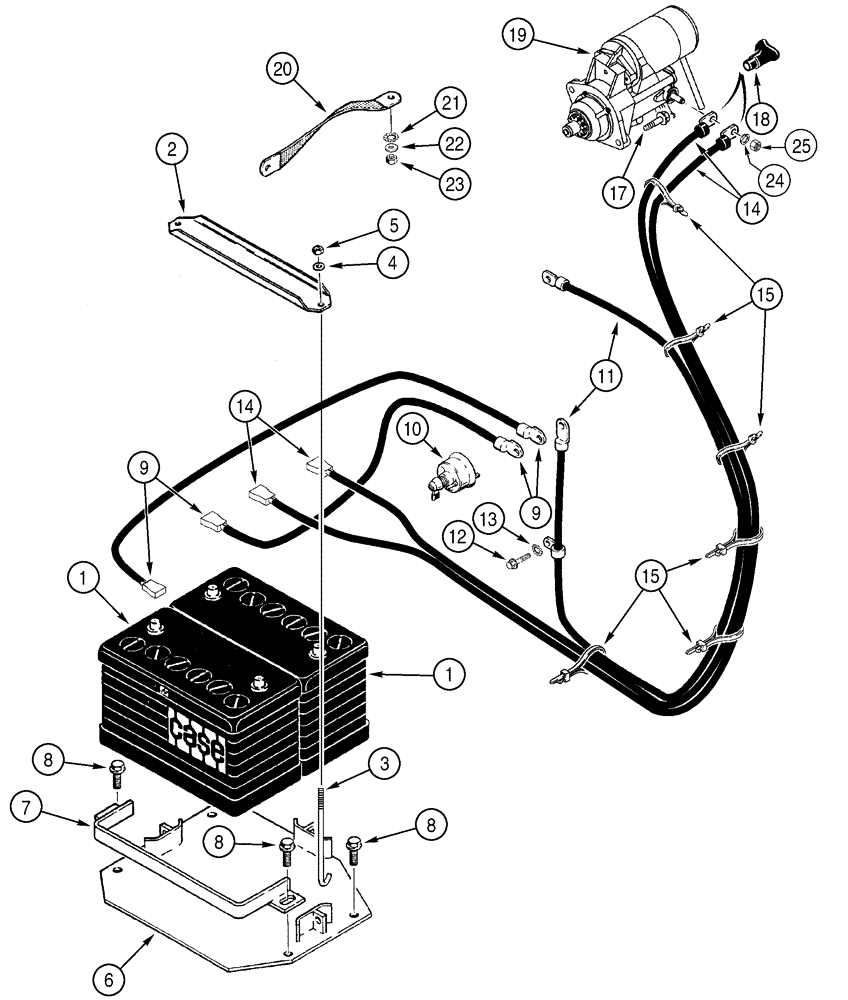

Запчасти Case 1150H (04-05) - BATTERY AND BATTERY CABLES - STARTER (04) - ELECTRICAL SYSTEMS

*

Models With Dual Batteries

1шт.

1

BMF31E

DRY BATTERY

12V

2шт.

2

R46490

BRACKET

1шт.

3

R27652

ROD

Battery Hold-Down

2шт.

4

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

5

231-1445

NUT,5/16"-18, GB

2шт.

6

R51652

SUPPORT

1шт.

7

R51654

SUPPORT

Rear

1шт.

8

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

3шт.

9

R47204

NEG BATTERY CABLE

Negative

2шт.

10

R52278

SWITCH

Master Disconnect Switch

1шт.

11

141782A1

CABLE

Battery - Ground, To Torque Converter, Includes Clamp

1шт.

12

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

1шт.

13

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

14

R57564

CABLE

Positive, Includes Conduit

2шт.

15

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP 15"

6шт.

17

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

1шт.

18

L126713

BOOT

1шт.

19

282161A1

STARTING MOTOR,12V, 2.7kW

See figure 04-01

1шт.

19

282161A1R

REMAN-STARTER,12V, 2.7kW

Reman for New P/N 282161A1

1шт.

19

282161A1C

CORE-STARTER,12V, 2.7kW

Return Number

1шт.

20

D73383

STRAP

Models With Cab

1шт.

21

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

22

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

23

L127555

NUT,Hex, 3/8" - 16

3/8

1шт.

24

892-11010

LOCK WASHER,M10

1шт.

25

825-1410

NUT,M10, Cl 8

1шт.
