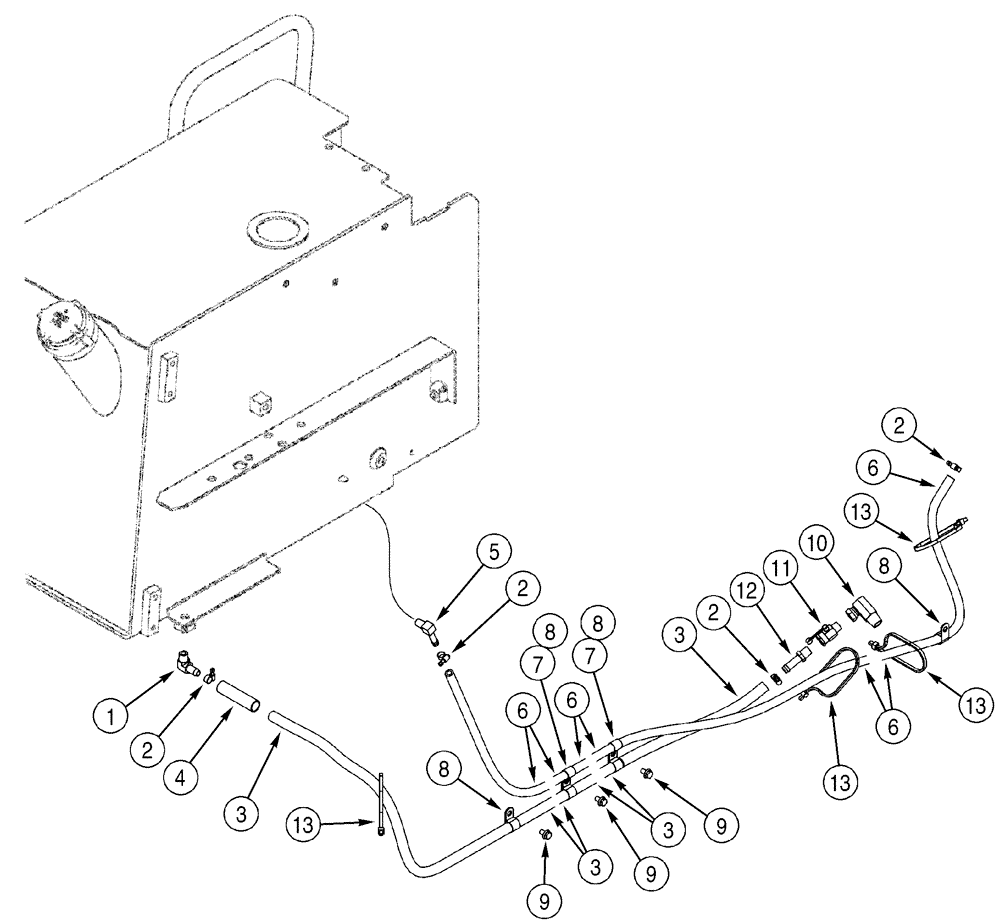

Запчасти Case 1150H (03-06) - FUEL LINES (03) - FUEL SYSTEM

1

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

2

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

1/2 - 29/32

4шт.

3

243560A1

FUEL HOSE,12.70 mm ID x 1900.00 mm , SAE 30R2

Supply

1шт.

4

R12586

TAPE

Supply Hose

1шт.

5

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

6

243561A1

FUEL HOSE,9.53 mm ID x 2500.00 mm , SAE 30R2

Return

1шт.

7

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

8

D20302

CLAMP,7/8", Insul, 3/8" Bolt

3/4 ID; If Used

1шт.

8

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3-4шт.

9

121-131

SERRATED BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

10

218-923

ELBOW,90 Degree, 1/2" NPTF Male x 3/8" NPSM Fem Sw

1/2 male x 3/8 fem

1шт.

11

284721A1

VALVE

1шт.

12

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.
