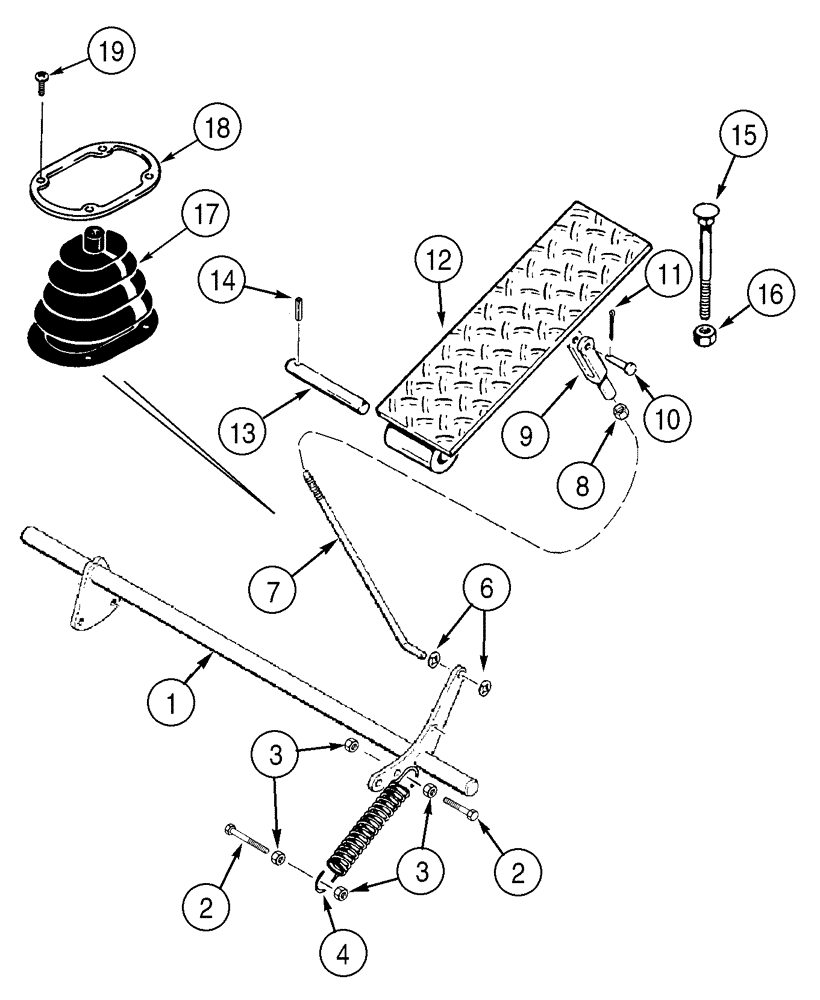

Запчасти Case 1150H (03-03) - CONTROLS, THROTTLE - PEDAL, ACCELERATOR (03) - FUEL SYSTEM

Models Without Decelerator

1шт.

1

R57907

SHAFT

1шт.

2

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

3

425-104

NUT,1/4"-20, Cl 5

4шт.

4

R36912

SPRING

1шт.

6

100-1431

SNAP RING,#31, Ext

2шт.

7

280906A1

ROD

1шт.

8

425-115

NUT,5/16"-24, G5

1шт.

9

213-125

ADJUSTABLE CLEVIS,5/16" - 32

1шт.

10

D149287

PIN,7.9mm OD x 26.72mm L

1шт.

11

432-612

COTTER PIN,3/32" x 3/4"

1шт.

12

R26937

PEDAL

1шт.

13

R17364

SHAFT

1шт.

14

38-11016

LOCK PIN,5/32" x 1", Slotted

1шт.

15

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

1/2 x 4; 2

1шт.

16

425-108

NUT,1/2" - 13, Gr 5

1шт.

17

R47896

BOOT

Models With Cab

1шт.

18

187174A1

RETAINER

Models With Cab

1шт.

19

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

10-24 X 3/4 ; Replaces 294-1658, 10 x 1/2

4шт.

20

223-113

152 mm (6 in), Not Illustrated, Used With REF 17

2шт.
