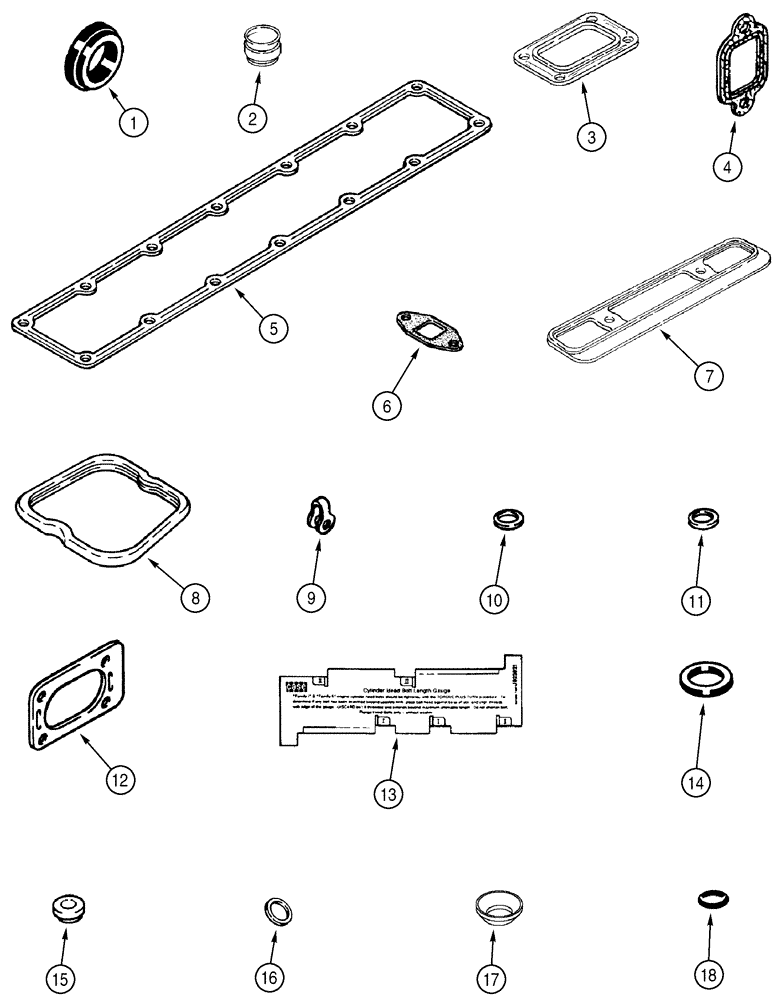

Запчасти Case 1150H (02-22) - GASKET KIT (02) - ENGINE

6T-590 Emissions Certified Engine

1шт.

Valve Grind

1шт.

A77925

GASKET KIT

Incl. 1 - 18

1шт.

1

J923331

GASKET

See Figure 02-15

1шт.

2

J921640

SEAL

Orange, Silver, See Figure 02-16

12шт.

3

J919369

GASKET,0.5mm Thk

See Figure 02-11

1шт.

4

J927154

GASKET,0.38mm Thk

See Figure 02-11

6шт.

5

J931347

GASKET

See Figure 02-11

1шт.

6

J931350

GASKET

See Figure 02-11

1шт.

7

J930426

GASKET

1шт.

8

J930906

GASKET

See Figure 02-15

6шт.

9

J903380

SEAL

See Figure 03-07

6шт.

10

J906659

SEAL

1,5 mm, See Figure 03-07-03-11

6шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 03-11

6шт.

12

J914856

GASKET,1.02mm Thk

Not Used In This Application

1шт.

13

J823921

GAUGE

1шт.

14

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

See Figure 02-10

1шт.

15

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

See Figure 02-15

6шт.

16

J900808

SEAL

If Used

6шт.

17

222-993

GASKET,3/8 Tube, Fl, Copper

See Figure 02-11

2шт.

18

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

If Used

6шт.
