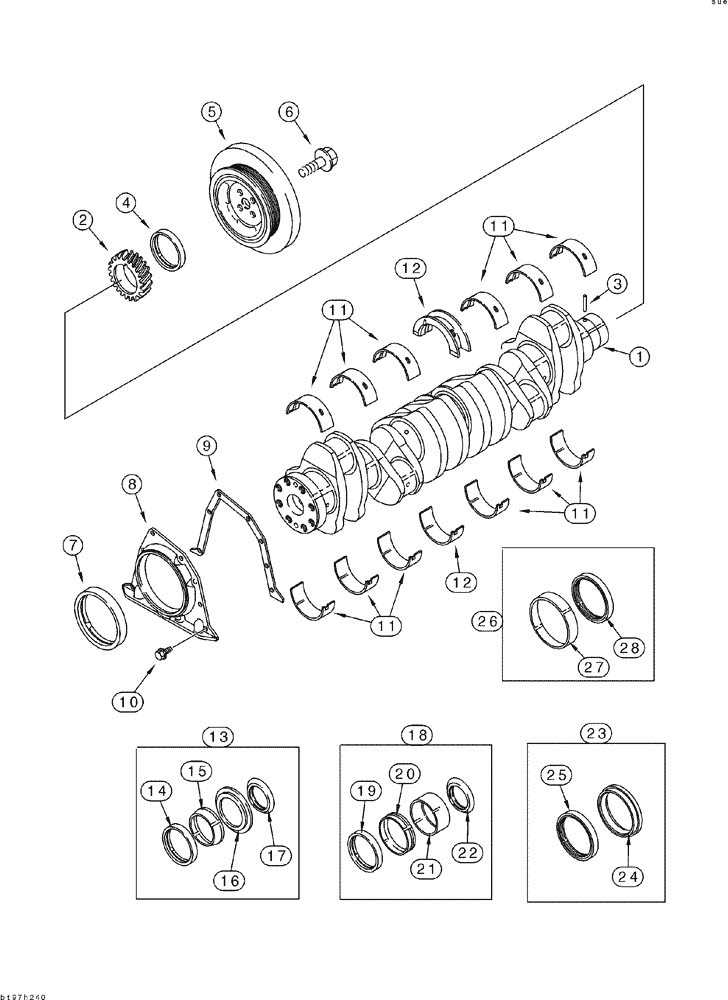

Запчасти Case 1150H (02-19) - CRANKSHAFT (02) - ENGINE

6T-590 Emissions Certified Engine

1шт.

JR908032

REMAN-CRANKSHAFT

North America Only

1шт.

JC908032

CORE-CRANKSHAFT

Return Number

1шт.

1

J908032

CRANKSHAFT

Incl. 2, 3

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77889, A77890, See Below

1шт.

5

J958258

DAMPER

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

7

NSS

NOT SOLD SEPARAT

Seal, Order J934486, See Below

1шт.

8

J936260

REAR COVER

1шт.

9

J928493

GASKET

1шт.

10

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

11

A77405

CRANKSHAFT BEARING

Standard

6шт.

11

A77472

BEARING SET

Undersize 0,25 mm

6шт.

11

A77474

BEARING SET

Undersize 0,50 mm

6шт.

11

A77476

BEARING SET

Undersize 0,75 mm

6шт.

11

A77478

BEARING SET

Undersize 1,00 mm

6шт.

12

A77896

BEARING SET

Standard

1шт.

12

A77473

THRUST BEARING

Undersize 0,25 mm

1шт.

12

A77475

THRUST BEARING

Undersize 0,50 mm

1шт.

12

A77477

THRUST BEARING

Undersize 0,75 mm

1шт.

12

A77479

THRUST BEARING

Undersize 1,00 mm

1шт.

12

A77841

THRUST BEARING

Undersize 0,50 mm, Oversize 0,50 mm

1шт.

12

A77840

THRUST BEARING

Undersize 1,00 mm, Oversize 1,00 mm

1шт.

13

A77889

SEAL PACKAGE

Crankshaft, Front, Incl. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

J934486

SERVICE KIT

Crankshaft, Rear, Incl. 24, 25

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

25

NSS

NOT SOLD SEPARAT

Seal

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear, Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
