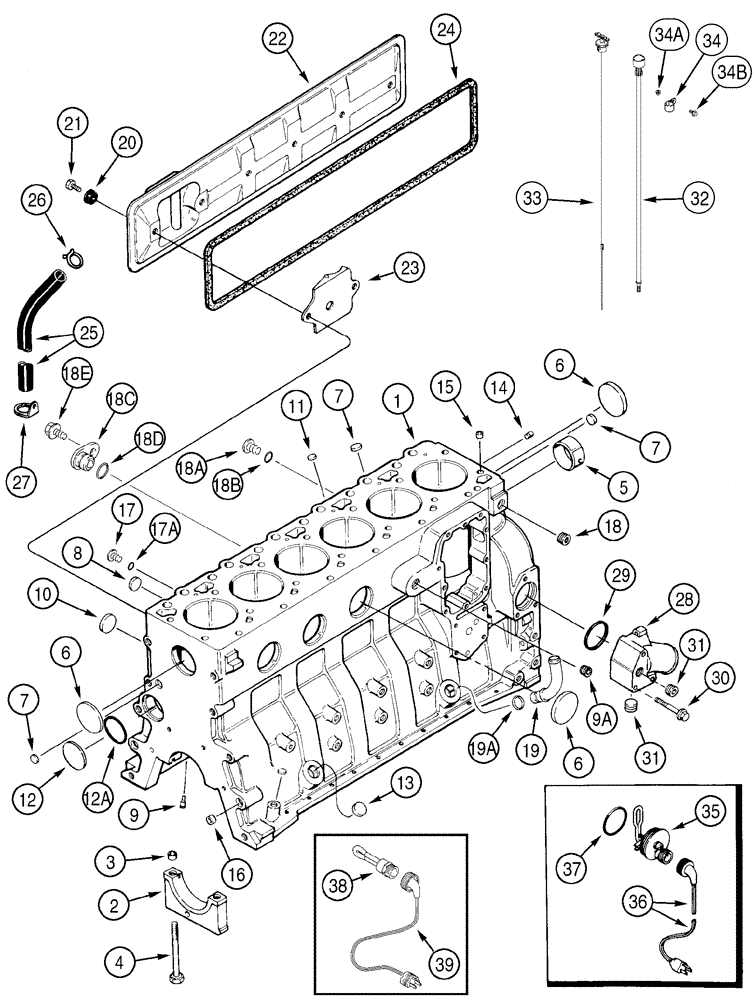

Запчасти Case 1150H (02-18) - CYLINDER BLOCK (02) - ENGINE

.

6T-590 Emissions Certified Engine

1шт.

348720A1

Complete Engine; Less: Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 246148A2

1шт.

246148A2

BASIC ENGINE

Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note

1шт.

246148A2R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

246148A2C

CORE-BASIC ENGINE

Return Part Number

1шт.

J933645

SKELETON ENGINE

Short, With: Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Incl. 1 - 8

1шт.

JR933645

REMAN-SHORT ENGINE

Remanufactured

1шт.

6-590-SHBC

CORE-SHORT ENGINE

Return Part Number, Block Assy., Engine Cyl. Short 6T/6TA

1шт.

1

J933712

CYLINDER BLOCK

Stripped, Incl. 2 - 8, Order J933220

1шт.

2

J903492

BEARING CAP

Incl. J900068

7шт.

3

J900068

BEARING WASHER

18 mm OD

14шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

14шт.

5

REF

INSTRUCTION

Bushing, Front, See Figure 02-17

1шт.

6

A77782

PLUG

58 mm

5шт.

7

J900956

PLUG

18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

4шт.

J933220

PACKAGE,SERVICE

Incl. 9 - 18D

1шт.

9

J930139

NOZZLE CAP

6шт.

9a

A77505

PLUG

3/4 PT

1шт.

10

J900958

PLUG

32 mm OD

1шт.

11

J900955

PLUG

10 mm OD

3шт.

12

172599

PLUG,Exp, 2 3/8"

60 mm OD

1шт.

12a

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm ID

1шт.

13

J920706

PLUG

22 mm

3шт.

14

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

15

J902343

DOWEL

16 mm OD

2шт.

16

J900068

BEARING WASHER

18 mm OD

2шт.

17

J678923

PLUG,M10 x 1

10 mm, Incl. 17A

3шт.

17a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

18

A77429

PLUG

1/2 PT

1шт.

18a

J678921

PLUG

14 mm, Includes 18B

1шт.

18b

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

18c

J932296

PLUG

Incl. 18D

1шт.

18d

J330478

O-RING,0.07" Thk x 0.676" ID

1шт.

18e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

19

J931973

TUBE,0.875" OD

Used With J931824

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

1шт.

20

J900267

SEAL

6шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

6шт.

22

J927913

COVER

1шт.

23

J907586

BAFFLE

Also Order J823494 Sealant

1шт.

J823494

SEALANT

3 oz

1шт.

24

J928832

GASKET

1шт.

25

J918614

TUBE,435.00 mm

635 mm (25 in)

1шт.

26

J904230

CLAMP,25.4mm

1шт.

27

J928989

CLIP

1шт.

28

J934877

HYD CONNECTOR

1шт.

29

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID

1шт.

30

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

31

A77429

PLUG

1/2 PT

2шт.

32

319805A2

TUBE,12.7 mm OD, 907.5 mm Length

1шт.

33

319806A2

DIPSTICK

1шт.

34

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

34a

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

34b

425-285

FLANGE NUT,Flg, 5/16"-18, G5

5/16

1шт.

.

Engine Block Heater

1шт.

.

120 Volt

1шт.

196803A1

KIT

120V, Consists Of 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

Element

1шт.

36

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

37

J910517

O-RING

1шт.

.

240 Volt

1шт.

124340A1

KIT

240V, Incl. 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

Element

1шт.

36

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

37

J910517

O-RING

1шт.

.

120 Volt

1шт.

309651A1

KIT

120V, Incl. 38, 39

1шт.

38

NSS

NOT SOLD SEPARAT

Element

1шт.

39

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

.

240 Volt

1шт.

309652A1

KIT

240V, Incl. 38, 39

1шт.

38

NSS

NOT SOLD SEPARAT

Element

1шт.

39

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

.

Repair Kit

1шт.

A77886

PACKAGE, REPAIR

Engine Block, Not Illustrated, Incl. 40 - 47

1шт.

40

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

See Figure 02-21

6шт.

41

J919053

PISTON PIN

See Figure 02-21

6шт.

42

A77465

BEARING SET

See Figure 02-21

6шт.

43

A77405

CRANKSHAFT BEARING

See Figure 02-19

6шт.

44

A77896

BEARING SET

See Figure 02-19

1шт.

45

A77925

GASKET KIT

See Figure 02-22

1шт.

46

J283335

GASKET,2.32mm Thk

See Figure 02-15

1шт.

47

A77676

GASKET KIT

See Figure 02-14

1шт.
