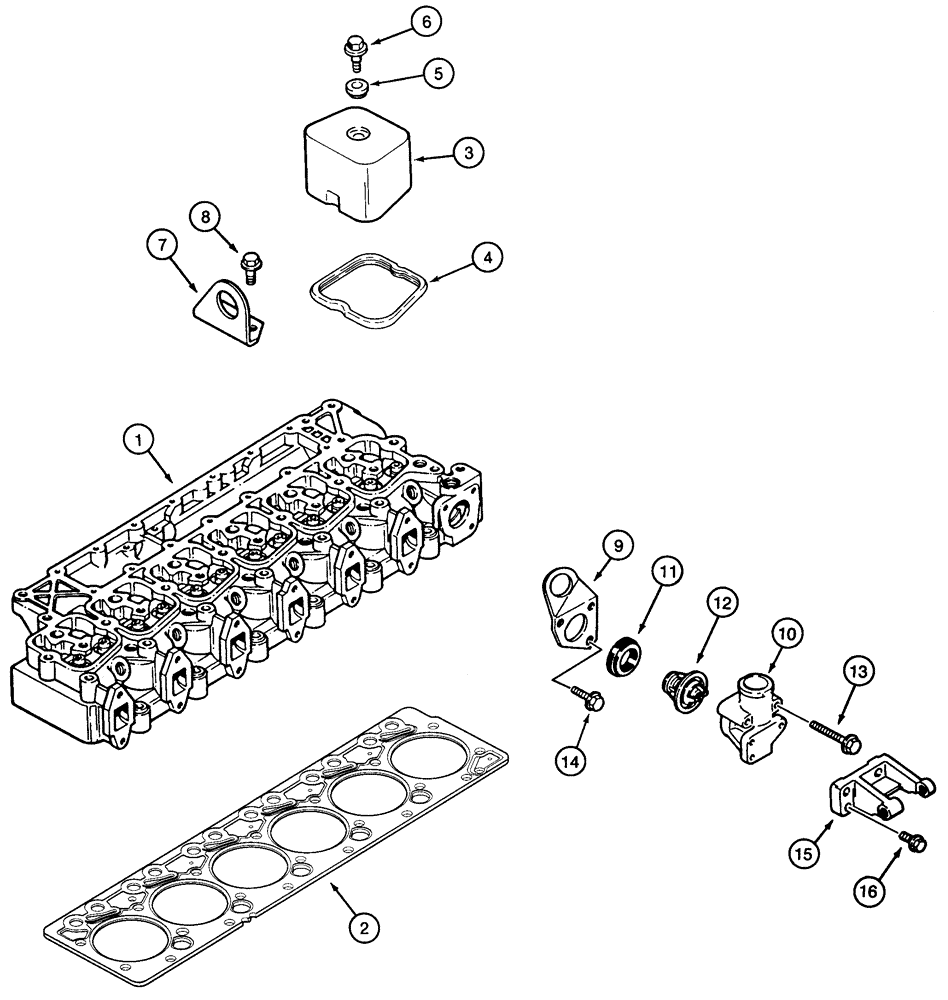

Запчасти Case 1150H (02-15) - CYLINDER HEAD - COVER (02) - ENGINE

6T-590 Emissions Certified Engine

1шт.

1

REF

INSTRUCTION

Head, Cylinder, See Figure 02-16

1шт.

2

J283335

GASKET,2.32mm Thk

1шт.

2

J283337

GASKET,2.24mm Thk

0,25 mm

1шт.

2

J283339

GASKET

0,50 mm

1шт.

3

J928404

COVER

6шт.

4

J930906

GASKET

6шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

6

J907049

BOLT,Hex

M8 x 21

6шт.

7

J908118

BRACKET

1шт.

8

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

M12 x 30; 10.9

2шт.

Thermostat and Housing

1шт.

9

J903757

BRACKET

1шт.

10

J914409

HOUSING

1шт.

A77736

THERMOSTAT

Thermostat, Incl. 11, 12

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

Thermostat

1шт.

13

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J923387

SUPPORT

1шт.

16

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.
