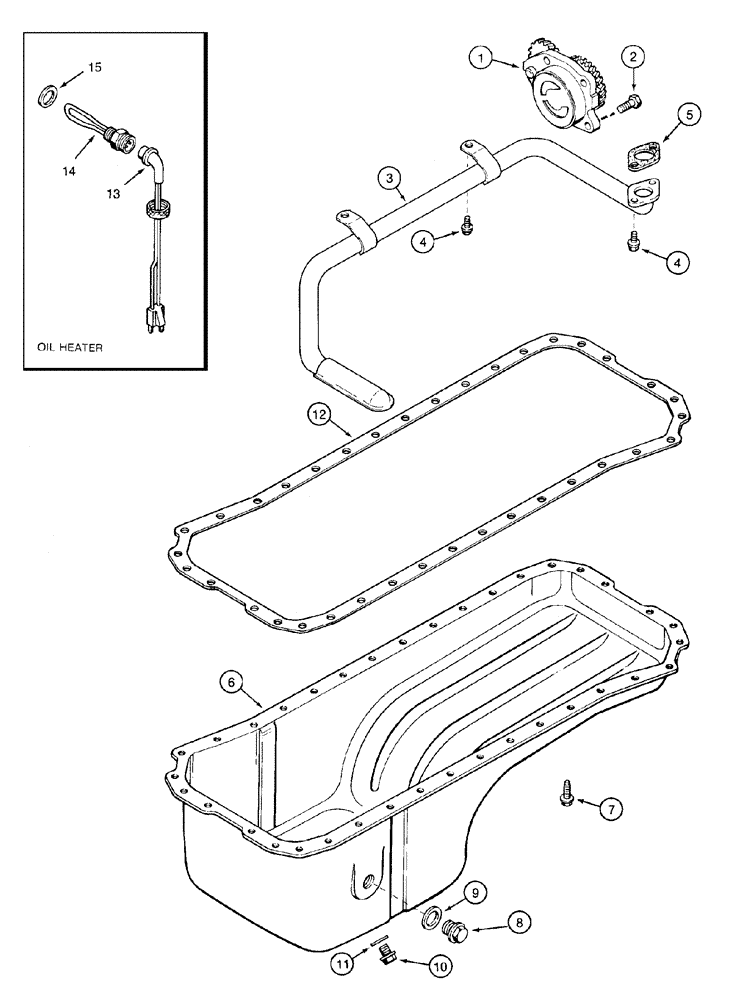

Запчасти Case 1150H (02-14) - OIL PUMP, PAN - HEATER (02) - ENGINE

6T-590 Emissions Certified Engine

1шт.

1

J941742

PUMP, ENGINE OIL

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return Number - For N.A. only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J934942

TUBE,1" OD

1шт.

4

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

5

J931349

GASKET

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

7

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

36шт.

8

J924148

PLUG,M22 x 1.5

M22

1шт.

9

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

10

J924147

PLUG,M18 x 1.5

M18

1шт.

11

J920773

SEALING WASHER

1шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Pan, Order A77676

1шт.

A77676

GASKET KIT

Incl. 5, 11, 12

1шт.

Engine Oil Heater

1шт.

120 Volt

1шт.

A77490

KIT

120V, Heater, Incl. 13, 14, Also Order J902425

1шт.

13

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

14

J904380

UNIT HEATER

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

240 Volt

1шт.

13

J905114

ELECTRIC CABLE

1829 mm (72 in)

1шт.

14

J904381

RESISTOR

240V

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.
