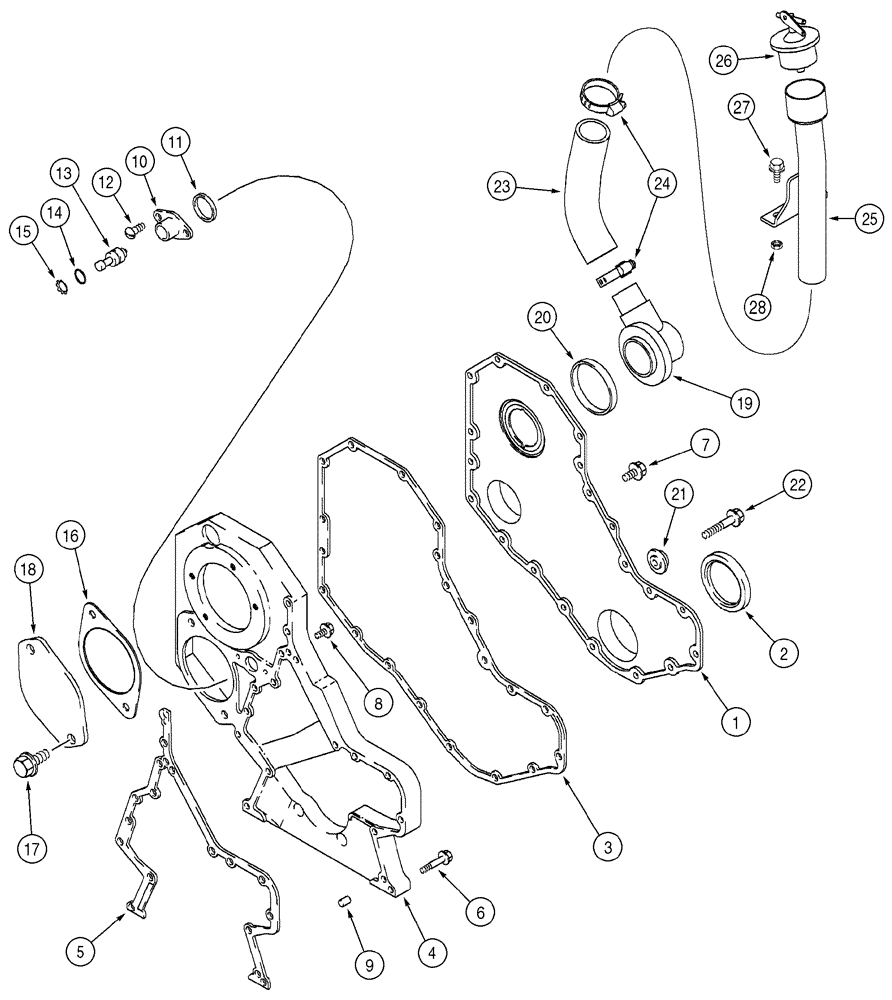

Запчасти Case 1150H (02-10) - FRONT GEAR COVER (02) - ENGINE

6T-590 Emissions Certified Engine

1шт.

1

J935581

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, Order A77889, A77890, See Figure 02-19

1шт.

4

J936257

HOUSING

1шт.

5

J931351

GASKET

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

J924962

FLANGE BOLT

M8 x 16

8шт.

8

J924962

FLANGE BOLT

M8 x 16

5шт.

9

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

10

J919683

HOUSING

1шт.

11

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

12

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

13

J903924

PIN,18.87mm OD x 55mm L

1шт.

14

J913994

O-RING

1шт.

15

100-2587

SNAP RING,0.875", Int, #87

1шт.

16

J929751

GASKET

1шт.

17

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

18

J914868

COVER

1шт.

J823494

SEALANT

3 oz

1шт.

19

J924595

CONNECTOR, ELEC

CONNECTOR

1шт.

20

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

21

J912772

RETAINER

1шт.

22

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

23

379592A1

HOSE,38.10 mm ID x 300.00 mm, SAE 20R1

1шт.

24

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

25

379646A1

PIPE

1шт.

26

L115504

CAP

1шт.

27

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

231-1445

NUT,5/16"-18, GB

2шт.
