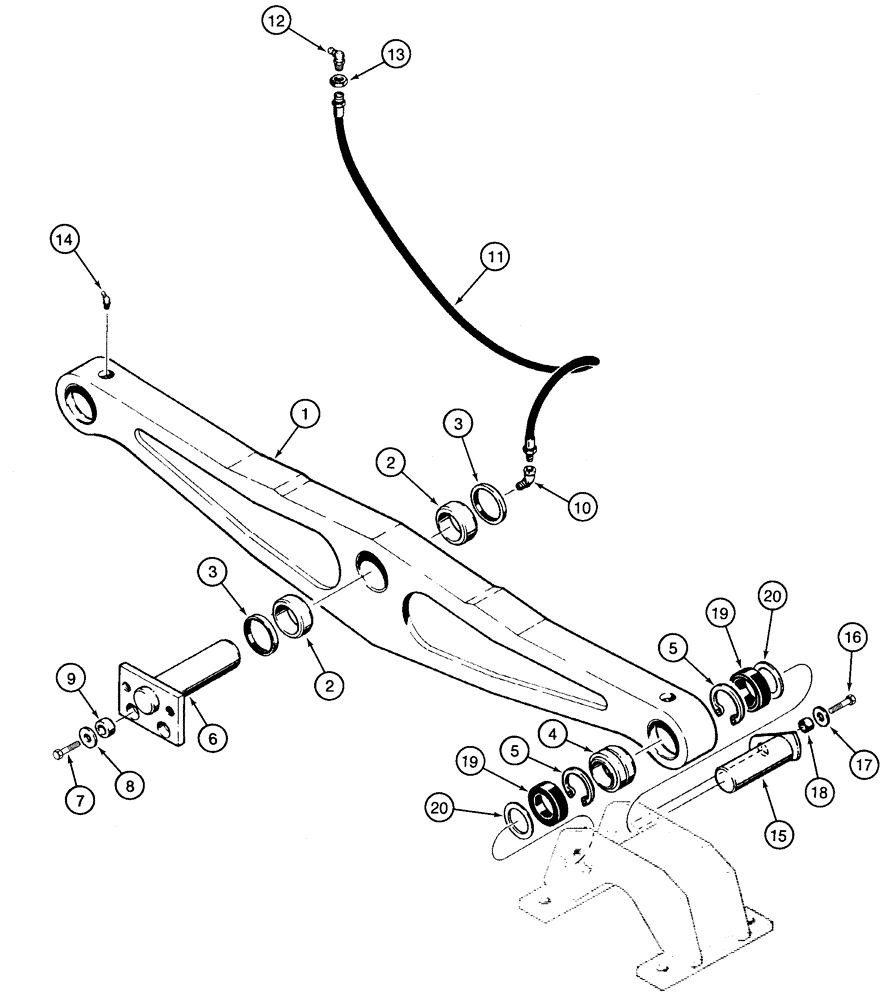

Запчасти Case 1150H (05-12) - SUSPENSION SYSTEM - EQUALIZER BEAM (11) - TRACKS/STEERING

R55857

BEAM ASSY.

Equalizer, 1575 mm (62 inch) Gauge Long Track (LT) Models, Incl. 1 - 5

1шт.

R55859

BEAM ASSY.

Equalizer, 1880 mm (74 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models, Incl. 1 - 5, Not Illustrated

1шт.

1

NSS

NOT SOLD SEPARAT

Beam, Equalizer

1шт.

2

D46403

BUSHING,63.75mm ID x 76.2mm OD x 28.44mm L

Center

2шт.

3

R39286

SEAL,63.5mm ID x 76.33mm OD x 7.92mm Thk

Use B17069, B500637

2шт.

3a

B17069

LOCTITE

Loctite, No. 609, 50ml

1шт.

3b

B500637

LOCTITE

Locquic, Gr. T, 6 oz

1шт.

4

R55649

BUSHING,50.8mm ID x 80.96mm OD x 44.45mm W

2шт.

5

100-21315

SNAP RING,3.156", Int, #315

4шт.

6

R40497

PIN,63.5mm OD x 213mm L

Center

1шт.

7

107-91232

LOCK BOLT,Locking, 3/4"-10 x 2", G8

2шт.

8

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

13/16 x 1-1/2 x 7/32

2шт.

9

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

2шт.

10

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

1/8 PT

1шт.

11

R45862

HOSE,3.17mm ID x 1041.4mm L, SAE 100R7

1041 mm (41 in)

1шт.

12

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1/4 tpr x 3/4

1шт.

13

F53473

LOCK NUT,1/8-27 NPSM

1/8 PT

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

15

R47945

PIN,50.77mm OD x 151.13mm L

Outer

2шт.

16

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

2шт.

17

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

13/16 x 1-1/2 x 7/32

2шт.

18

T31129

BUSHING,19.66mm ID x 31.75mm OD x 17.48mm L

2шт.

19

R36521

SEAL

4шт.

20

D34668

WASHER,52.39mm ID x 76.2mm OD x 3.57mm Thk

4шт.
