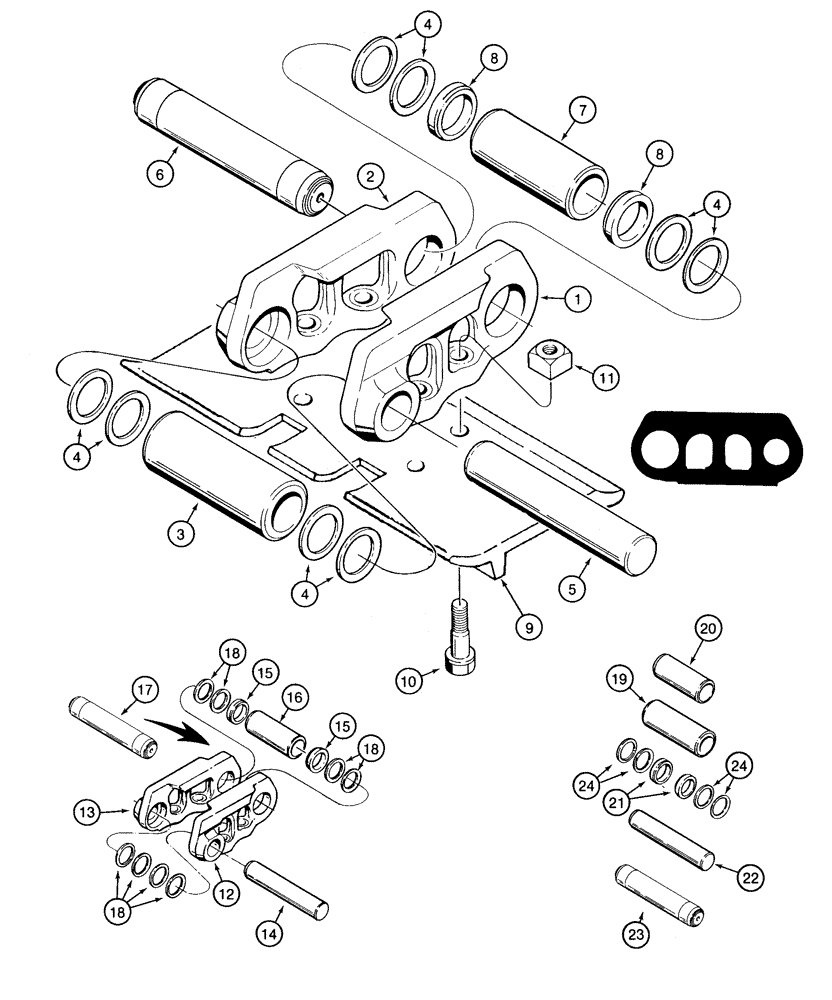

Запчасти Case 1150H (05-08) - TRACK CHAIN, SEALED (11) - TRACKS/STEERING

R56724

CHAIN (CE)

Track, Incl. 1 - 8

2шт.

1

R51185

DRAG LINK

Right Hand

43шт.

2

R51186

CHAIN LINK

Left Hand

43шт.

3

R51195

BUSHING

59 mm (2-5/16 in) OD, Link

42шт.

4

R50211

WASHER

172шт.

5

S108923

PIN

42шт.

6

R54282

SERVICE KIT

0,076 mm (0,003 in), Master Link

1шт.

7

R51196

BUSHING

Master Link

1шт.

8

R51199

SPACER

2шт.

9

178831A1

TRACK SHOE

508 mm (20 in)

86шт.

10

R27166

BOLT

5/8 NF x 2-3/16

344шт.

11

R25688

SQUARE NUT

5/8 NF

344шт.

Chain Unit Kit

1шт.

R51729

LINK ASSY.

Includes Instruction Sheet for Track Chain and Pin Installation, Ref 12 - 18

1шт.

12

R51185

DRAG LINK

Right Hand

1шт.

13

R51186

CHAIN LINK

Left Hand

1шт.

14

S108923

PIN

2шт.

15

R51199

SPACER

2шт.

16

R51196

BUSHING

Master Link

1шт.

17

R54282

SERVICE KIT

0,076 mm (0,003 in), Master Link

1шт.

18

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

8шт.

Pin and Bushing Kit

1шт.

Services Complete Track Chain for Both Sides of Tractor

1шт.

R56727

KIT

Pin and Bushing, Includes Instruction Sheet for Track Chain and Pin Installation, Ref 19 - 25

1шт.

19

R51195

BUSHING

59 mm (2-5/16 in) OD, Standard Pin

84шт.

20

R51196

BUSHING

Master Pin

2шт.

21

R51199

SPACER

4шт.

22

S108923

PIN

Standard

84шт.

23

R54282

SERVICE KIT

0,076 mm (0,003 in), Oversize, Master Link

2шт.

24

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

344шт.
