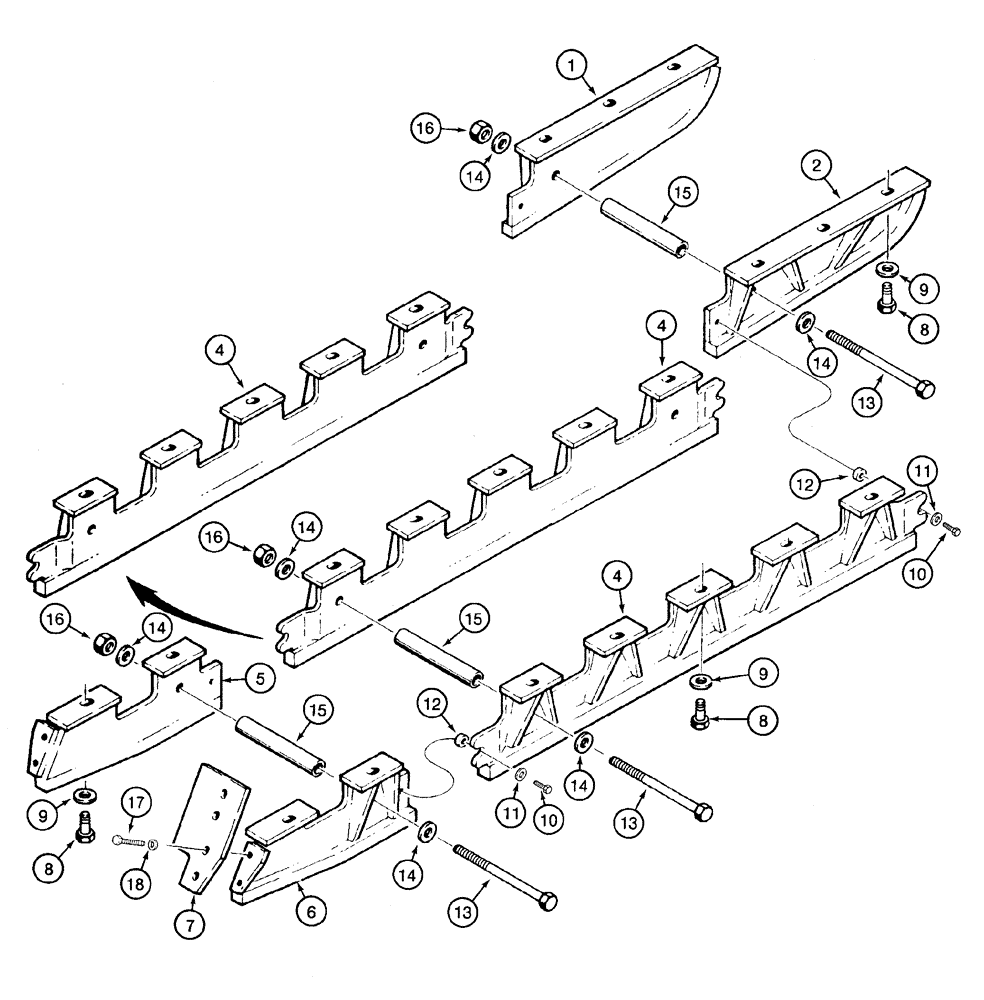

Запчасти Case 1150H (05-07) - TRACK GUARDS (11) - TRACKS/STEERING

1

R44377

PROTECTOR

Front, Left Hand Outer, Right Hand Inner

2шт.

2

R44378

PROTECTOR

Front, Right Hand Outer, Left Hand Inner

2шт.

4

R44373

PROTECTOR

Center

4шт.

5

R44385

GUIDE

Rear, Left Hand Outer, Right Hand Inner

2шт.

6

R44386

GUIDE

Rear, Right Hand Outer, Left Hand Inner

2шт.

7

R46471

COVER

4шт.

8

106-91224

LOCK BOLT,Locking, 3/4"-10 x 1 1/2", G5, Full Thd

40шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

40шт.

10

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

11

D64050

WASHER

8шт.

12

R43651

SPACER

8шт.

13

413-12176

BOLT,3/4"-10 x 11", Gr 5

3/4 x 11

8шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

16шт.

15

R27555

SPACER

6шт.

16

231-41112

LOCK NUT,3/4"-10, GB

8шт.

17

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

16шт.

18

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

21/32 x 1-5/16 x 5/32

16шт.
