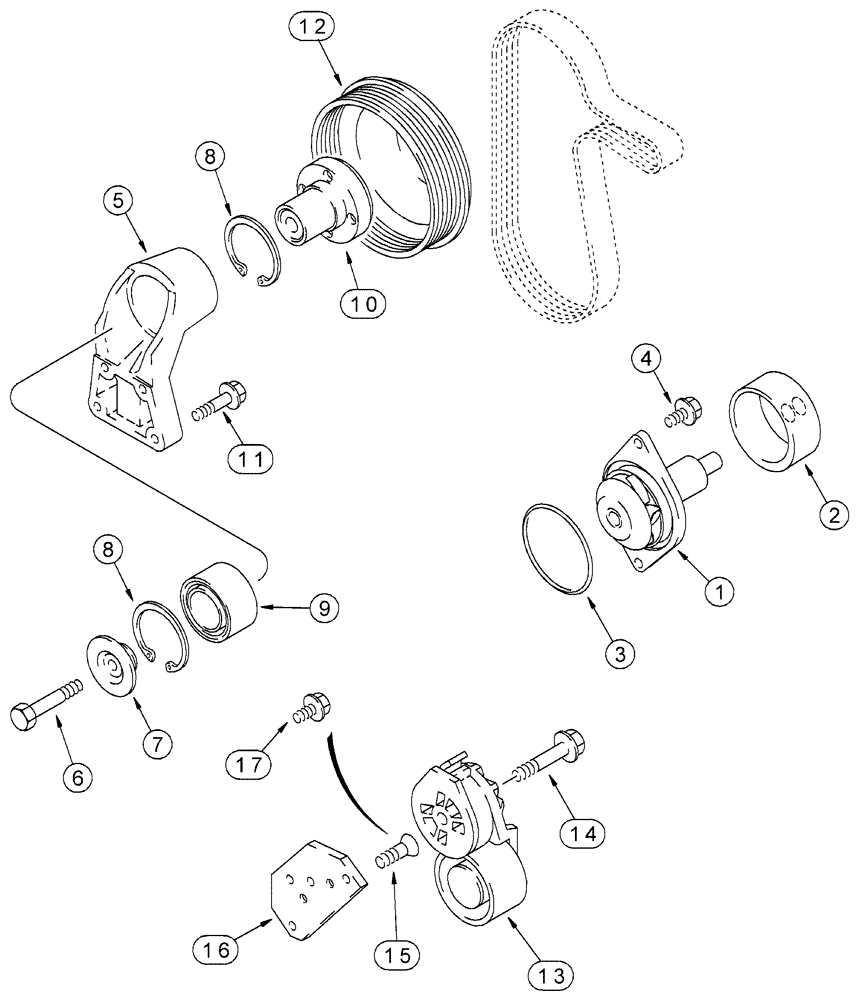

Запчасти Case 1150H (02-09) - WATER PUMP SYSTEM (02) - ENGINE

*

6T-590 Emissions Certified Engine

1шт.

J802970

PUMP, WATER

Water Pump, Incl. 1 - 3

1шт.

J286278R

REMAN-WATER PUMP

1150H

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pump

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911922

SUPPORT ASSY.

Incl. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

1шт.

13

J936202

BELT TENSIONER

1шт.

14

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

16

J925207

SUPPORT

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.
