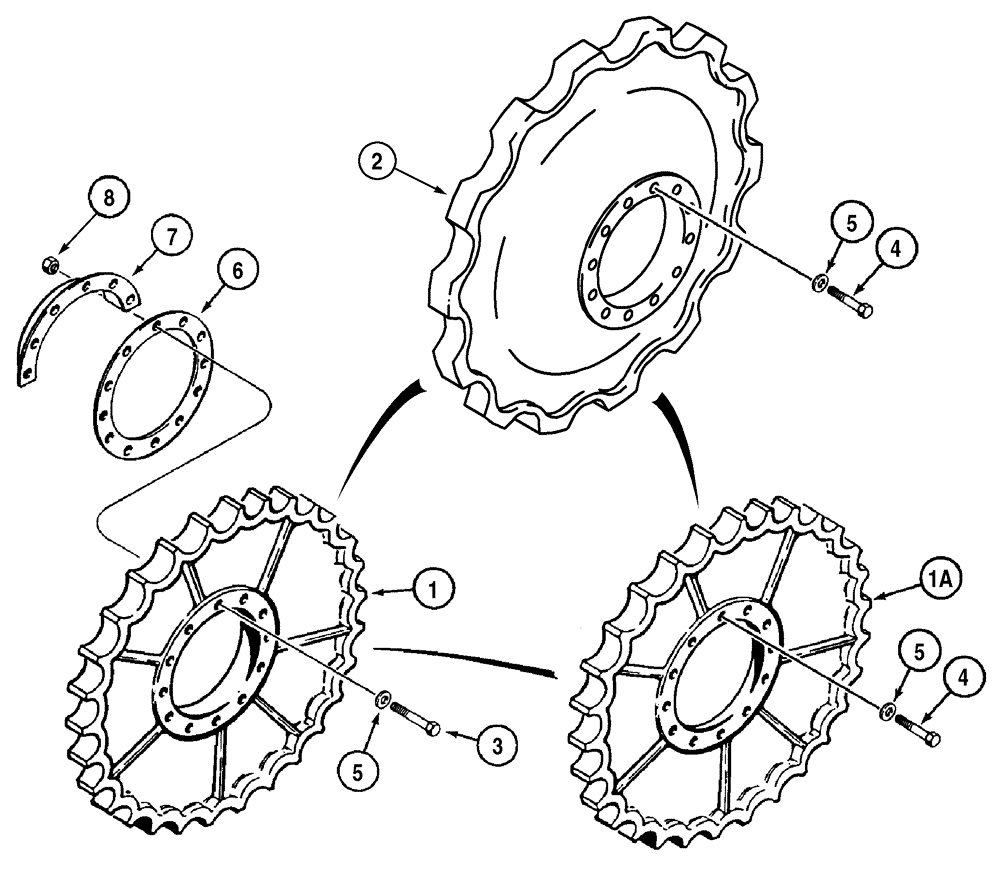

Запчасти Case 1150H (05-03) - SPROCKET, TRACK (11) - TRACKS/STEERING

1

R53118

DRIVE SPROCKET

29T, Used on Models With Case Lubricated Track Chain, 1575 mm (62 inch) Gauge Long Track (LT) Models

2шт.

1a

R53119

DRIVE SPROCKET

29T, Used on Models With Case Lubricated Track Chain, 1880 mm (74 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models

2шт.

2

363117A1

SPROCKET ASSY.

14T, Used on Models With Extended Life Track Chain, 1575 mm (62 inch) Gauge Long Track (LT) Models, 1880 mm (74 inch) Gauge Wide Track (WT) or Low Ground Pressure (LGP) Models

2шт.

3

R27242

BOLT

3/4 x 3; 8, Used With R53118

24шт.

4

R31277

BOLT

3/4 x 4-1/4; 8, Used With R53119, 363117A1

24шт.

5

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

24шт.

6

R27241

SHIM,1/32" Thk

1шт.

7

192443A1

GUARD

Final Drive, If Equipped

4шт.

8

29-1012

NUT,3/4"-10, G8

Use Loctite No. 242

24шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.
