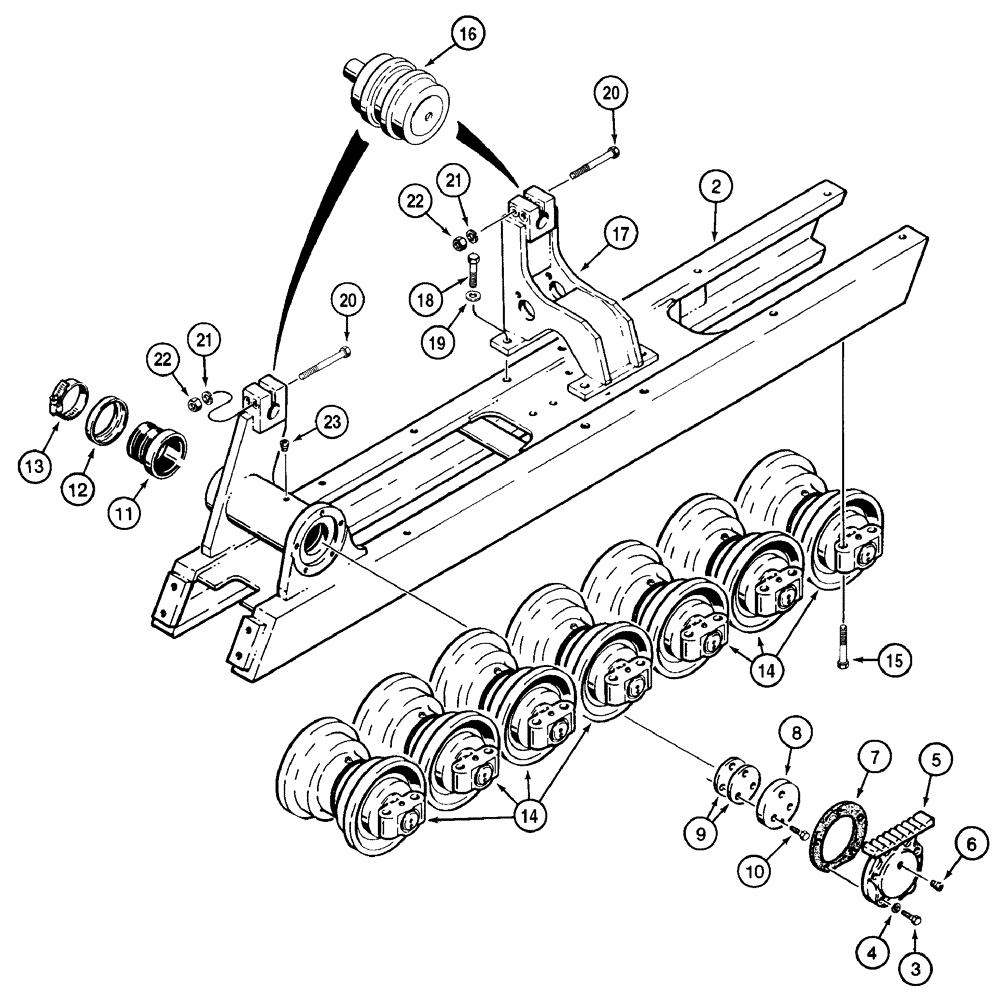

Запчасти Case 1150H (05-01) - FRAME, TRACK - ROLLER (11) - TRACKS/STEERING

1

R55873

FRAME

Track, Left Hand, Not Illustrated

1шт.

2

R55872

FRAME

Track, Right Hand

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

5

R46782

COVER

Pivot Shaft, Includes 6

2шт.

6

221-841

PLUG

1/4 PT

1шт.

7

R27377

GASKET,0.38mm Thk

1шт.

8

R36949

PLATE

2шт.

9

R27540

SHIM,.031" Thk

1шт.

10

25334R1

BOLT,Hex, 5/8" - 18 x 1 3/4", Gr 8

5/8 NF x 1-3/4; 8

6шт.

11

R41714

SEAL

2шт.

12

R41713

GUARD

Seal

2шт.

13

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

3-1/4 x 4-1/8

2шт.

14

R33571

ROLLER

Track, See Figure 05-06

14шт.

15

106-91248

LOCK BOLT,Locking, 3/4"-10 x 3", G5

56шт.

16

241263A1

ROLLER ASSY.

Carrier, Component Parts Not Serviced Separately

4шт.

17

R45454

SUPPORT

2шт.

18

107-91232

LOCK BOLT,Locking, 3/4"-10 x 2", G8

8шт.

19

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

8шт.

20

326-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

8шт.

21

492-11062

BEARING WASHER,5/8"

8шт.

22

429-1010

NUT,5/8"-11, G8

8шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

2шт.
