(09-40) - DECALS - LATIN AMERICAN SPANISH, CANADIAN FRENCH

Запчасти Case 1150H (09-40) - DECALS - LATIN AMERICAN SPANISH, CANADIAN FRENCH (09) - CHASSIS

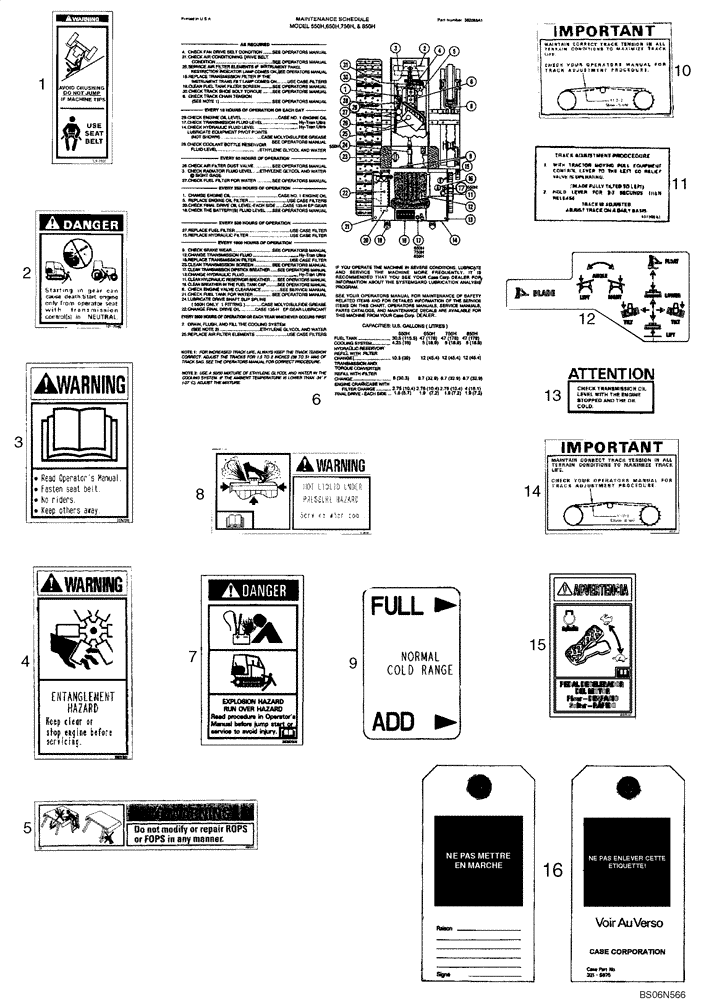

Схема запчастей Case 1150H - (09-40) - DECALS - LATIN AMERICAN SPANISH, CANADIAN FRENCH (09) - CHASSIS
2
7
1
12
4
3
9
6
11
14
10
5
16
13
8
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

SPANISH

1шт.

1

124271A1

DECAL

Warning Do Not Jump

1шт.

2

124281A1

DECAL

Start Instructions

1шт.

3

334000A2

DECAL

Warning General Operation

1шт.

4

334034A1

WARNING DECAL

Fan Hazard

1шт.

5

389729A1

WARNING DECAL

No Welding

2шт.

6

389733A1

DECAL

Maintenance

1шт.

7

389736A1

DECAL

Danger Explosion Hazard

1шт.

8

389741A1

DECAL

Warning Hot Liquid

3шт.

9

389743A1

DECAL

Coolant

1шт.

10

389746A1

DECAL

Important Track Adj

1шт.

11

389789A1

DECAL

Fuses, Cab

1шт.

12

389760A1

DECAL

Blade Control

1шт.

13

389777A1

DECAL

Attention Trans Oil

1шт.

14

389786A1

DECAL

Important Track Adj

1шт.

15

389753A1

DECAL

Decelerator Warning

1шт.

FRENCH

1шт.

1

124269A1

DECAL

Warning Do Not Jump

1шт.

2

124279A1

DECAL

Start Instructions

1шт.

3

333999A2

DECAL

Warning General Operation

1шт.

4

334033A1

DECAL

Fan Hazard

1шт.

5

389730A1

WARNING DECAL

No Welding

2шт.

6

389734A1

DECAL

Maintenance

1шт.

7

389737A1

DECAL

Danger Explosion Hazard

1шт.

8

389742A1

DECAL

Warning Hot Liquid

3шт.

9

389744A1

DECAL

Coolant

1шт.

10

389747A1

DECAL

Important Track Adj

1шт.

11

389791A1

DECAL

Fuses, Cab

1шт.

12

389762A1

DECAL

Blade Control

1шт.

13

389778A1

DECAL

Attention Trans Oil

1шт.

14

389787A1

DECAL

Important Track Adj

1шт.

15

389756A1

DECAL

Decelerator Warning

1шт.

16

321-5675

TAG

Tag, Do Not Operate; Not Illustrated

1шт.
