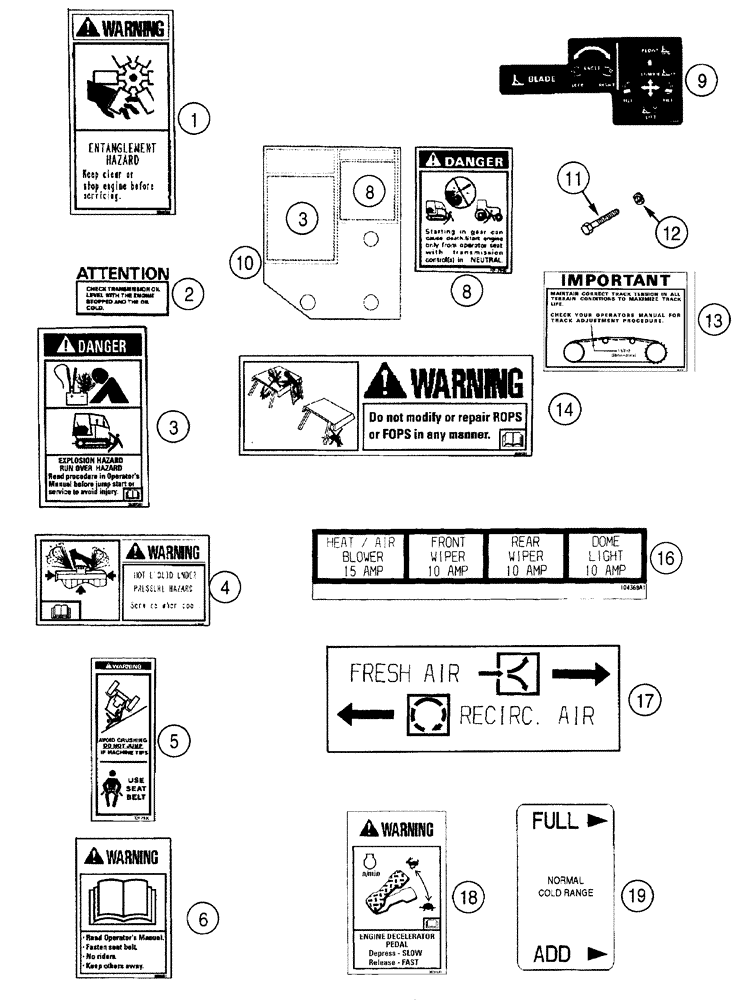

Запчасти Case 1150H (09-39) - DECALS - ENGLISH (09) - CHASSIS

1

332512A1

DECAL

Entanglement Hazard

1шт.

2

R50495

DECAL

Transmission Oil

1шт.

3

383973A1

DECAL,60mm x 100mm H

Jump Start, Battery

3шт.

4

329044A1

WARNING DECAL,168mm x 88mm H

Radiator Cap

1шт.

5

321-7030

WARNING DECAL

Do Not Jump

1шт.

6

382622A1

DECAL,60mm x 90mm H

Read the Operator's Manual

1шт.

8

321-7040

DANGER DECAL

Engine Start Warning

1шт.

9

178505A1

DECAL

Dozer Blade Control Pattern

1шт.

10

109696A1

LARGE PLATE

PLATE, LARGE Decal Mounting, Used With 3, 8

1шт.

11

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

12

892-11012

LOCK WASHER,M12

2шт.

13

R57817

DECAL

Track Tension

1шт.

14

383972A1

WARNING DECAL,195mm x 37mm H

Do Not Modify ROPS, ROPS Canopy Models

1шт.

16

104368A1

DECAL

Fuse Location, Cab Models

1шт.

17

R46825

DECAL

Fresh Air, Cab Models

1шт.

18

383971A1

DECAL

Engine Decelerator Pedal

1шт.

19

384710A1

DECAL

Coolant Level

1шт.
