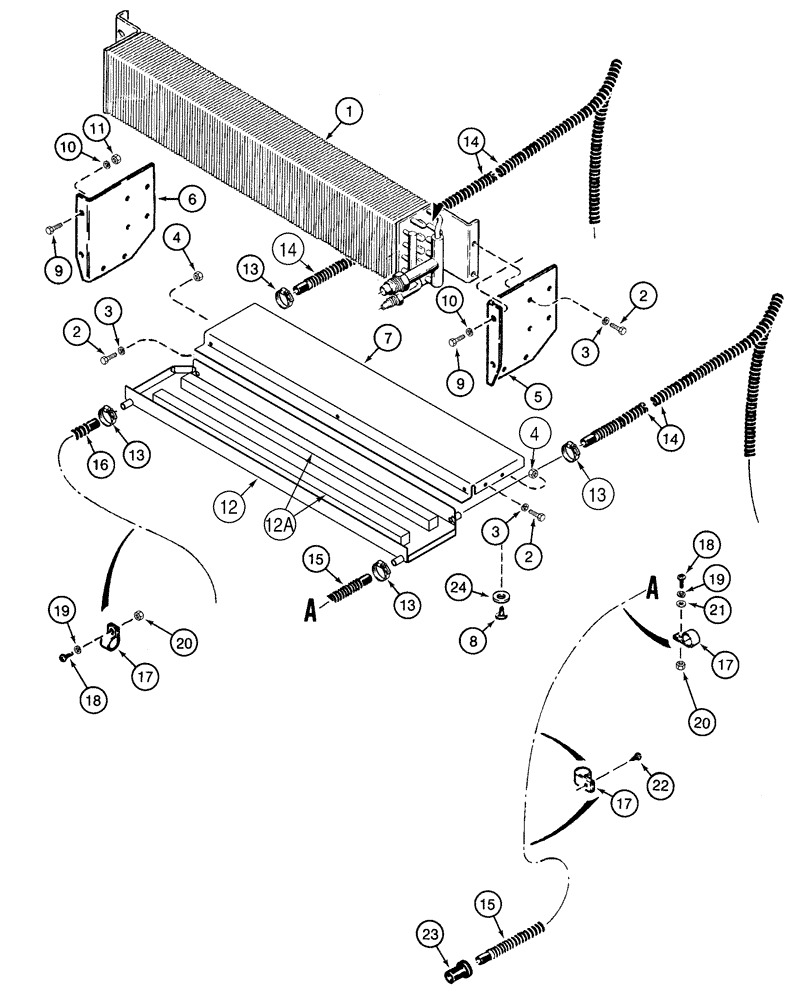

Запчасти Case 1150H (09-34) - AIR CONDITIONING SYSTEM (09) - CHASSIS

Evaporator Core Mounting

1шт.

1

1340490C4

EVAPORATOR

1шт.

2

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

15шт.

3

492-11025

LOCK WASHER,1/4"

15шт.

4

425-104

NUT,1/4"-20, Cl 5

7шт.

5

R52820

SUPPORT

Mounting, Evaporator Core And Pan, Right Hand

1шт.

6

R52821

SUPPORT

Mounting, Evaporator Core And Pan, Left Hand

1шт.

7

345906A1

SUPPORT

1шт.

8

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

9шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

492-11031

LOCK WASHER,5/16"

4шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

252628A1

PAN

Evaporator

1шт.

12a

253008A1

SEAL

700 mm, Air

2шт.

13

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

1/4 - 5/8

4шт.

14

R48815

1016 mm (40 in), Cut From F64508X, Drain, Front

2шт.

15

R53837

1778 mm (70 in), Cut From F64508X, Drain, Right Hand Rear

1шт.

16

R53838

2032 mm (80 in), Cut From F64508X, Drain, Left Hand Rear

1шт.

17

L70217

CLAMP

9шт.

18

140-105

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

5шт.

19

492-11010

LOCK WASHER,#10

5шт.

20

225-14110

NUT,#10-24

5шт.

21

495-31022

WASHER,#10

4шт.

22

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

4шт.

23

F44790

VALVE

Rear Drain Hose

2шт.

24

195-81026

WASHER,.266" x 13/16" x .079"

17/64 x 13/16 x 3/32

9шт.
