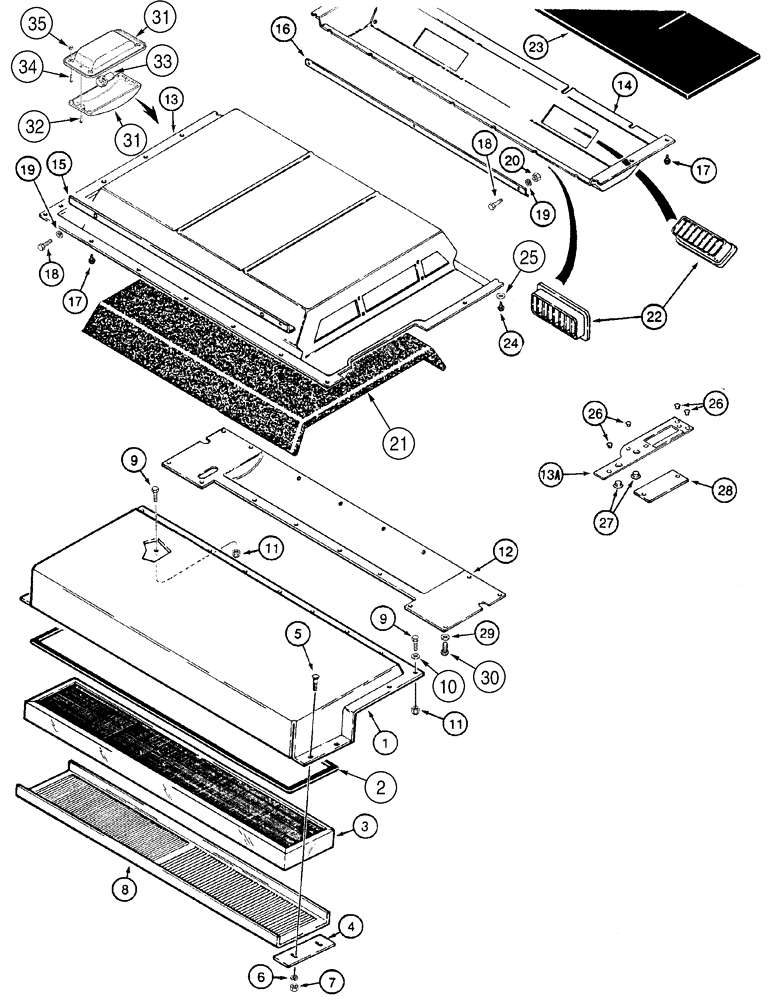

Запчасти Case 1150H (09-30) - CAB - FILTER, AIR AND HEADLINERS (09) - CHASSIS

1

189640A1

HOUSING

Air Filter

1шт.

2

F63669

SEAL

1шт.

3

F64318

AIR FILTER

1шт.

4

195544A1

PLATE

2шт.

5

411-416

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1", Gr 2

1/4 x 1; 2

4шт.

6

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16

4шт.

7

231-1444

NUT,1/4"-20, GB

4шт.

8

R46136

SIEVE

Filter

1шт.

9

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

13шт.

10

F42778

WASHER

11шт.

11

231-1445

NUT,5/16"-18, GB

13шт.

12

187467A1

ROOF

Rear

1шт.

13

187461A1

ROOF

Center

1шт.

13a

1999698C1

CLAMP

1шт.

14

192487A2

ROOF LINING

Front

1шт.

15

R51723

ANGLE BAR

Rear

1шт.

16

R52822

ANGLE

Front

1шт.

18

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

5шт.

19

492-11025

LOCK WASHER,1/4"

5шт.

20

425-104

NUT,1/4"-20, Cl 5

3шт.

21

187468A1

PADDING

1шт.

22

L109555

GUARD

Headliner

6шт.

23

R51916

FOAM

1шт.

24

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

9шт.

345-41

ADHESIVE

Used To Attach Foam Pads

1шт.

25

195-81026

WASHER,.266" x 13/16" x .079"

17/64 x 13/16 x 3/32

9шт.

26

353-421

PLUG,Dome, .187" hole, Nylon

Used on models without air conditioning

4шт.

27

353-406

PLUG,Dome, .625" hole, Nylon

5/8, Used On Models Without Air Conditioning

2шт.

28

1999420C1

COVER

Use Existing Hardware

1шт.

29

F64315

WASHER

35шт.

30

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

1/4 x 3/4

35шт.

31

R54198

COURTESY LIGHT

DOME LIGHT Incl. 32, 33

1шт.

32

173-297

SCREW,Phil Rnd Hd, #8 - 32 x 1/4"

No. 8 x 1/4

2шт.

33

B50217

BULB

12V , No. 93

1шт.

34

473-10810

SCREW,Slotted Flat Hd, #8-32 x 5/8"

No. 8 x 5/8

4шт.

35

225-14108

NUT,#8-32

4шт.
