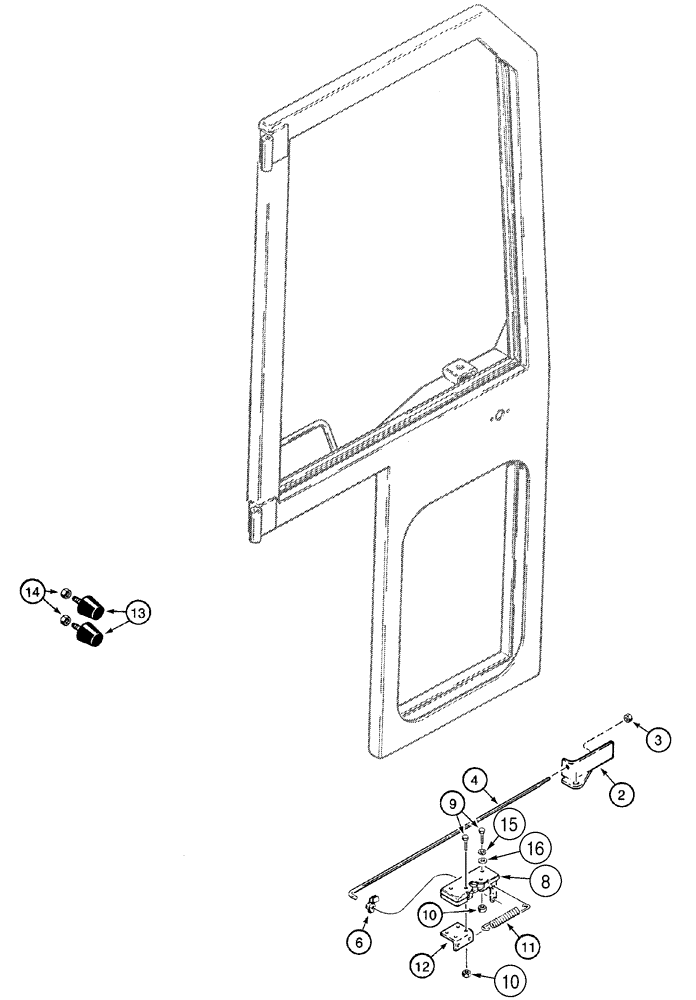

Запчасти Case 1150H (09-26) - CAB - LATCH, DOOR (09) - CHASSIS

1

R53915

LEVER

Left Hand, Not Illustrated

1шт.

2

R53916

LEVER

Right Hand

1шт.

3

231-1444

NUT,1/4"-20, GB

2шт.

4

R53920

STEM

2шт.

5

F43349

CLIP

Left Hand, Not Illustrated

1шт.

6

F43350

CLIP

Right Hand

1шт.

7

R55003

LATCH ASSY.

Left Hand, Not Illustrated

1шт.

8

R55002

LATCH

Right Hand

1шт.

10

231-1444

NUT,1/4"-20, GB

8шт.

11

L35748

SPRING

2шт.

12

R54347

SUPPORT

2шт.

13

N7673

BUMPER

4шт.

14

425-145

JAM NUT,Jam, 5/16"-18, G5

4шт.

15

492-11025

LOCK WASHER,1/4"

8шт.

16

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

8шт.

9

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

8шт.
