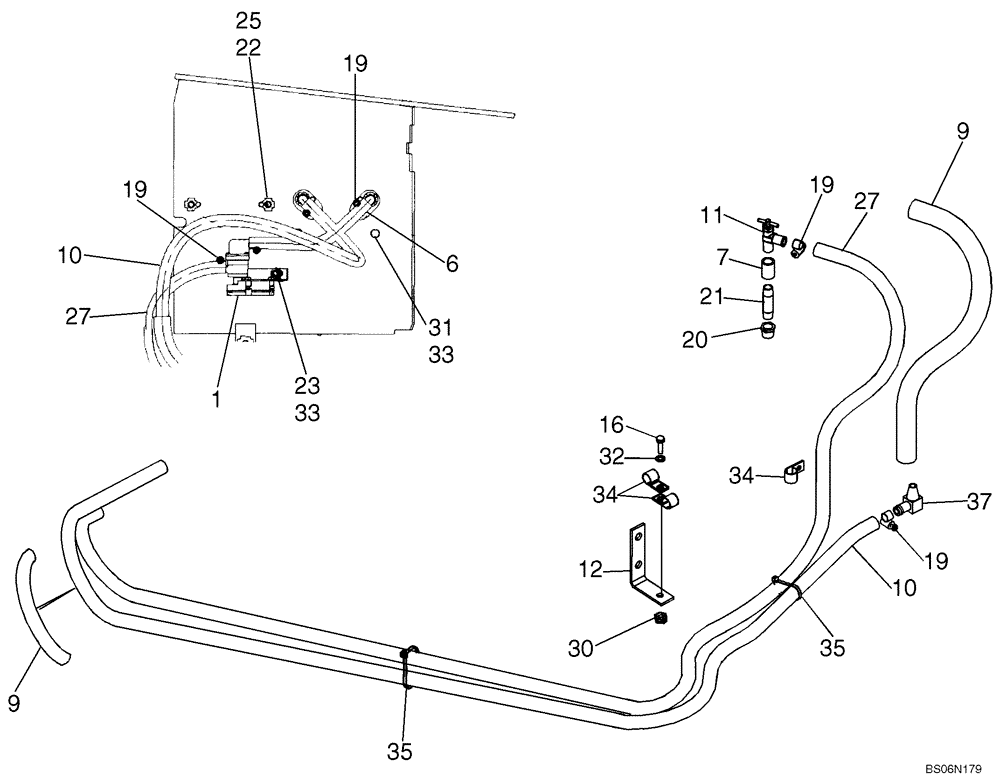

Запчасти Case 1150H (09-23A) - CANOPY, ROPS - HEATER SYSTEM (AT ENGINE) (09) - CHASSIS

1

382537A1

ACTUATOR

Valve, Kysor Heater Flow Control

1шт.

6

400362A1

HEATER HOSE,15.88 mm ID x 550.00 mm

Supply

1шт.

7

221-1337

COUPLING,Pipe, 3/8" NPT

Pipe, 3/8

1шт.

8

314451A1

RELAY

Heavy Duty, Sealed Base (45 Amp), Not Illustrasted; Replaces D128310; See Fig 4-08, Ref 18A

1шт.

9

S121023

CONDUIT

3шт.

10

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

Return

1шт.

11

301803R1

SHUT-OFF VALVE

Shut - Off; Replaces A16764

1шт.

12

R51414

SUPPORT

Heater Hose

1шт.

13

A149804

FUSE

30 Amp, Not Illustrated; See Fig 4-08, Ref 16

1шт.

16

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

19

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

6шт.

20

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

HEX Reducer Pipe 1/2 x 3/8 GALV

1шт.

21

221-1165

JUNCTION

Nipple Pipe 3/8 NPTF x 2.50 GALV

1шт.

22

224-2206

SQUARE NUT,Sq, 3/8"-16

Square 3/8 - 16

1шт.

23

231-1446

NUT,3/8" - 16, Gr 5

1шт.

25

336371A1

PIN,4.88mm OD x 14.23mm L

1шт.

27

1974655C1

HEATER HOSE,15.5mm ID x 2642mm L

Heater Supply

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

HEX FLG HD 3/8 x 0.75; 5

1шт.

30

425-106

NUT,3/8"-16, Cl 5

1шт.

32

492-11038

LOCK WASHER,3/8"

1шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

0.406 x 0.812 x .065 inch

2шт.

34

D20302

CLAMP,7/8", Insul, 3/8" Bolt

3шт.

35

L18331

CABLE TIE,375.9mm L, Nylon

CABLE STRAP 15"ch, Nylon

2шт.

37

R50454

FITTING

90 Barb Hose Stem

1шт.
