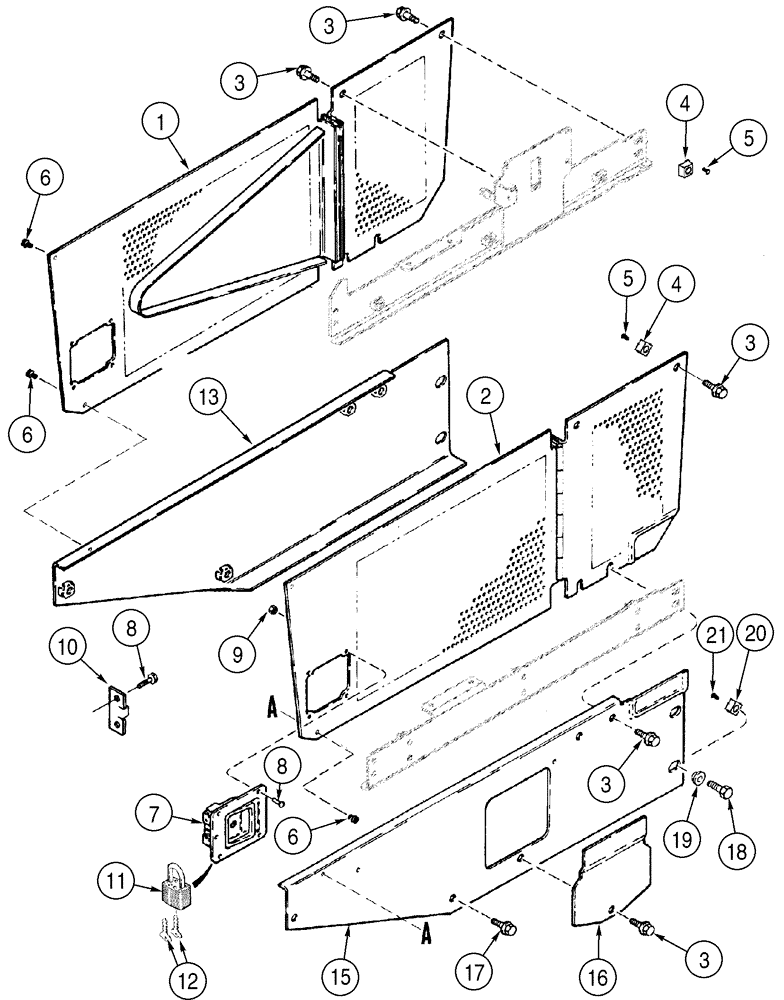

Запчасти Case 1150H (09-14) - SHIELDS, SIDE (09) - CHASSIS

1

R55456

SHIELD

Side Shield, Upper Left Hand

1шт.

2

R55089

GUARD ASSY.

Side Shield, Upper Right Hand

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

5шт.

4

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

4шт.

5

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

6

A161780

BUMPER

4шт.

7

R56221

LATCH

2шт.

8

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

12шт.

9

231-5344

FLANGE NUT,Flg, 1/4"-20

8шт.

10

141562A1

HAMMER

2шт.

11

D93753

PADLOCK

Incl. 12

1шт.

12

R29555

KEY

For Master Padlock Only

2шт.

12

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.

13

R53891

HOOD

Side Shield, Lower Left Hand

1шт.

14

186312A1

SHIELD

Lower Right Hand, Production Only, Not Illustrated, Order 15, 16

1шт.

15

R53893

HOOD

Side Shield, Lower Right Hand

1шт.

16

R50128

LARGE PLATE

PLATE, LARGE Access, Use With 15

1шт.

17

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Use Loctite No. 242

4шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

19

R54996

SPACER

4шт.

20

224-2808

SQUARE NUT,Sq, 1/2"-13, G2, Hvy

4шт.

21

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.
