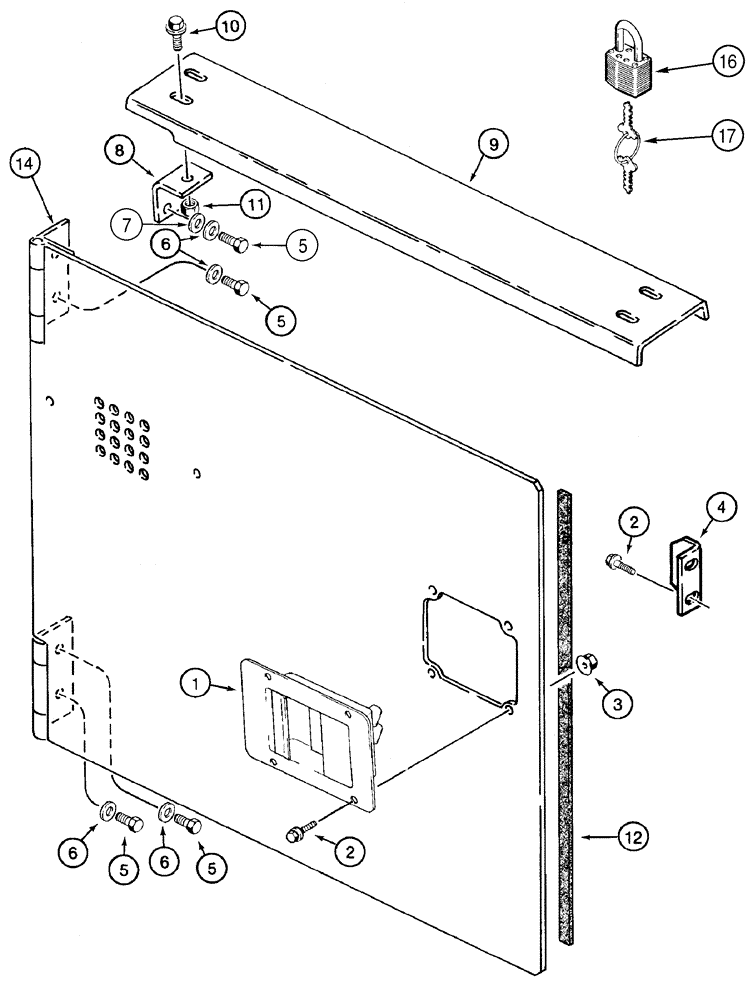

Запчасти Case 1150H (09-12) - COVERS - REAR (09) - CHASSIS

1

R56221

LATCH

1шт.

2

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

3

131-1351

FLANGE NUT,Flg, 1/4"-20

4шт.

4

R56397

LARGE PLATE

PLATE, LARGE

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

6шт.

7

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

1шт.

8

R48725

SUPPORT

2шт.

9

141070A1

COVER

Top

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

11

131-203

LOCK NUT,3/8"-16, GB, LH

3/8

2шт.

12

R56995

PROTECTION STRIP

515 mm, Use With 13

1шт.

13

345-44

ADHESIVE

1шт.

14

R55078

COVER

Rear, Includes 15, Models Without Cab

1шт.

14

101194A1

COVER

Rear, Includes 15, Models With Cab

1шт.

15

R50984

HINGE

Weld-On

2шт.

16

D93753

PADLOCK

Incl. 17

1шт.

17

R29555

KEY

For Master Padlock Only

2шт.

17

D93751

SET OF 2 KEYS

For Yale Padlock Only

2шт.
