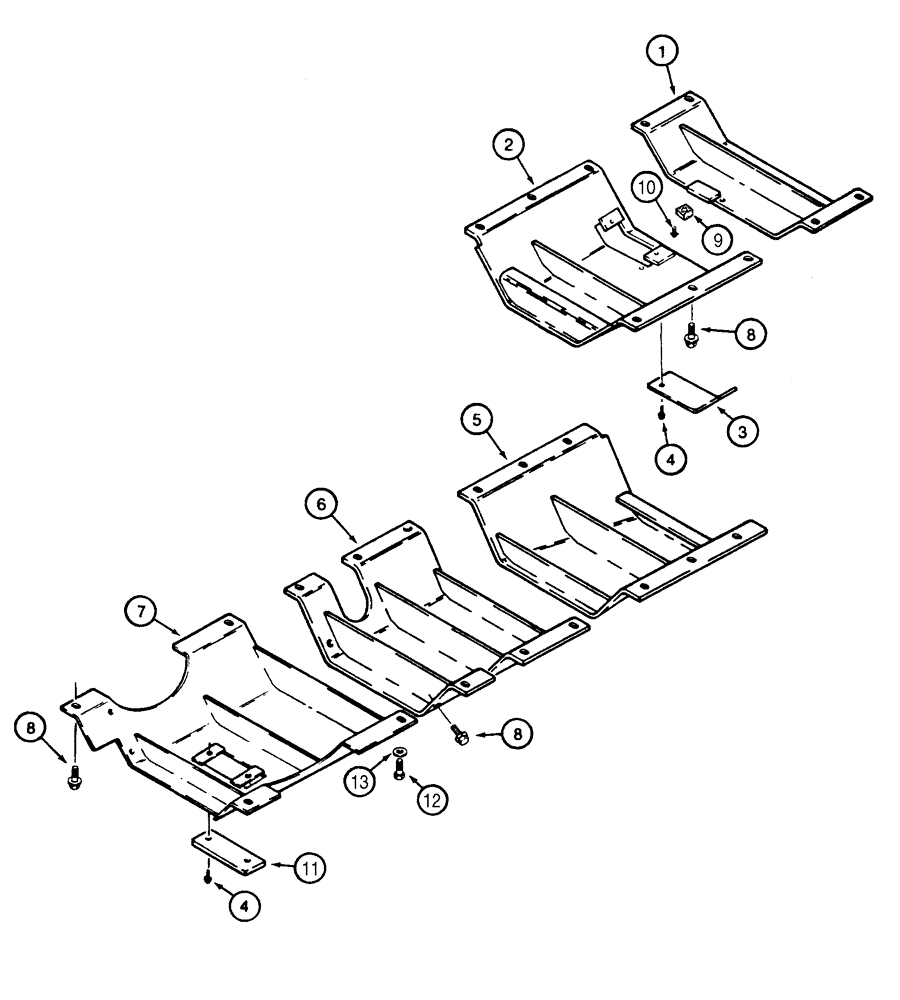

Запчасти Case 1150H (09-10) - SHIELDS, UNDERCARRIAGE (09) - CHASSIS

1

R48349

GUARD ASSY.

Front

1шт.

2

R54943

GUARD ASSY.

Engine Oil Pan

1шт.

3

R48345

COVER

Engine Oil Drain

1шт.

4

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

3/8 x 3/4; 8

4шт.

5

R36545

GUARD ASSY.

Torque Converter

1шт.

6

R52167

GUARD ASSY.

Pivot Shaft

1шт.

7

R26356

GUARD ASSY.

Transmission, Rear

1шт.

8

360-1028

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

Replaces 360-1032, 5/8 x 2; 8; Used on Some Models

24шт.

9

129-860

SQUARE NUT,Sq, 5/8"-11

24шт.

10

336371A1

PIN,4.88mm OD x 14.23mm L

24шт.

11

R48231

COVER

Transmission Oil Drain

1шт.

12

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 x 1-3/4

2шт.

13

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

2шт.
