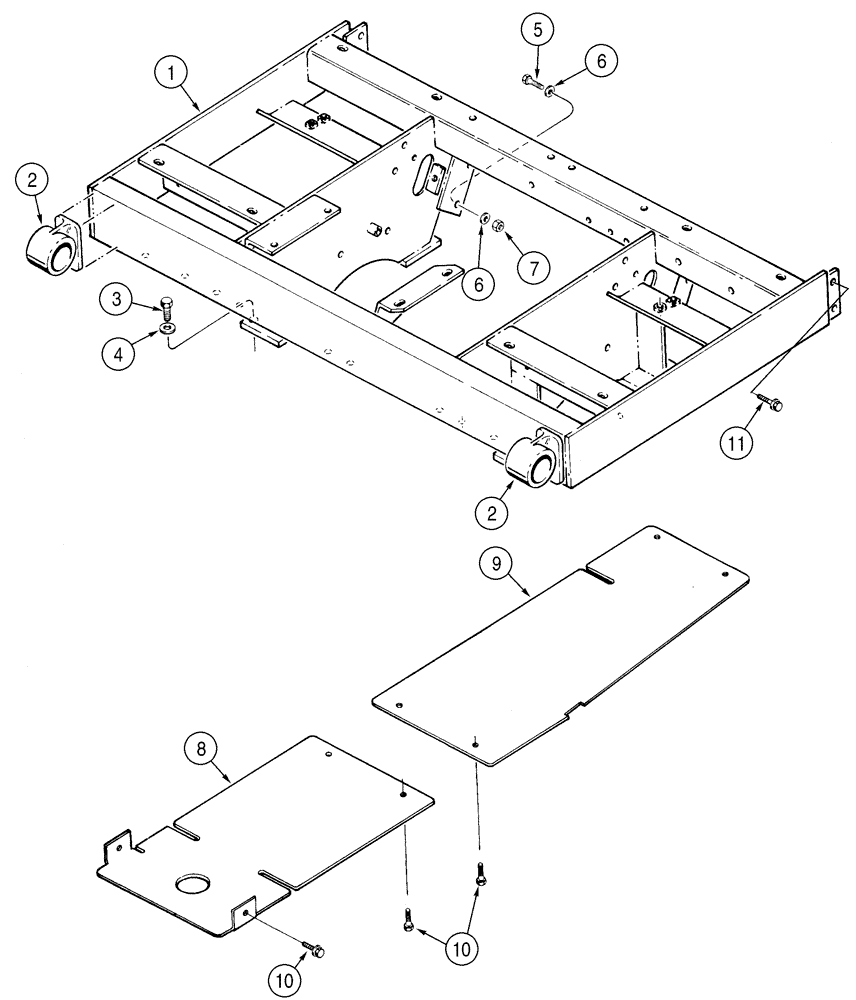

Запчасти Case 1150H (09-09) - MOUNTING - FRAME, SEAT AND RESERVOIR (09) - CHASSIS

1

143915A1

FRAME

Seat and Reservoir

1шт.

2

R39921

BRACKET

Welded On

2шт.

3

107-91228

LOCK BOLT,Locking, 3/4"-10 x 1 3/4", G8, Full Thd

8шт.

4

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

8шт.

5

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

6шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

12шт.

7

425-1010

NUT,5/8"-11, G5

6шт.

8

144027A1

COVER

Hydraulic Lines, Left Hand and Right Hand, Rear

2шт.

9

143884A1

COVER

Hydraulic Lines, Left Hand and Right Hand, Front

2шт.

10

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

Replaces 160-107, 1/2" x 1 1/4; Used on Some Models

16шт.

11

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

1/2 x 1-1/2; 8

4шт.
