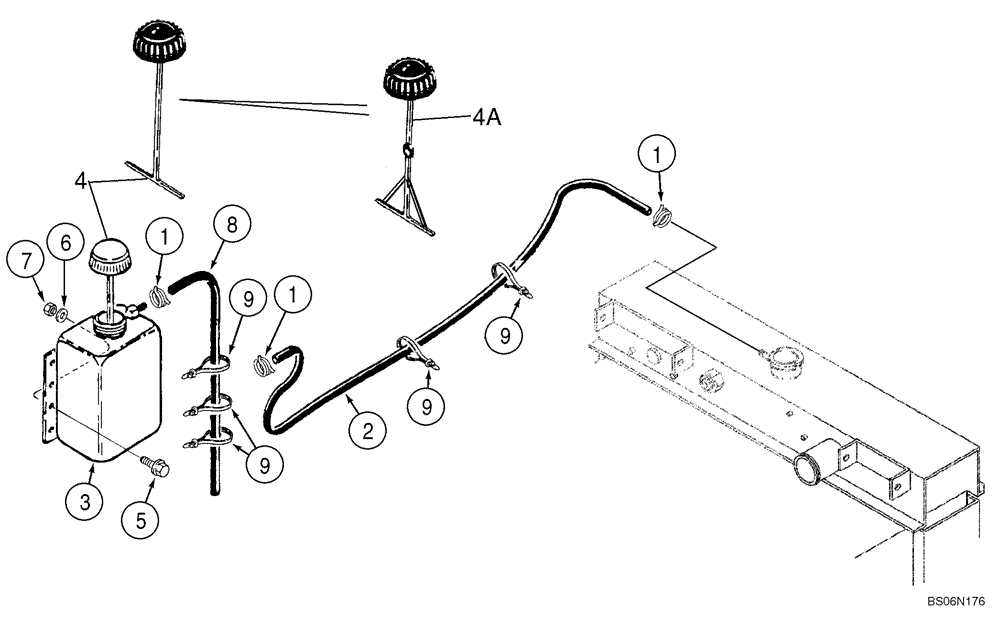

Запчасти Case 1150H (02-05) - COOLANT RECOVERY SYSTEM (02) - ENGINE

1

A171099

HOSE CLAMP,13.2mm - 15.4mm

3шт.

2

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Cut from L126767, Radiator to Coolant Reservoir

1шт.

3

L127093

RESERVOIR

Coolant

1шт.

4

1547924C1

CAP

If Used

1шт.

4a

A184079

CAP

Reservoir; If Used

1шт.

5

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

6

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

4шт.

7

231-1445

NUT,5/16"-18, GB

4шт.

8

A171872

HOSE,8.30 mm ID x 1000.00 mm, SAE J30, SAE 20R4 PER SAE j20e

Cut from L126767, Coolant Overflow

1шт.

9

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.
