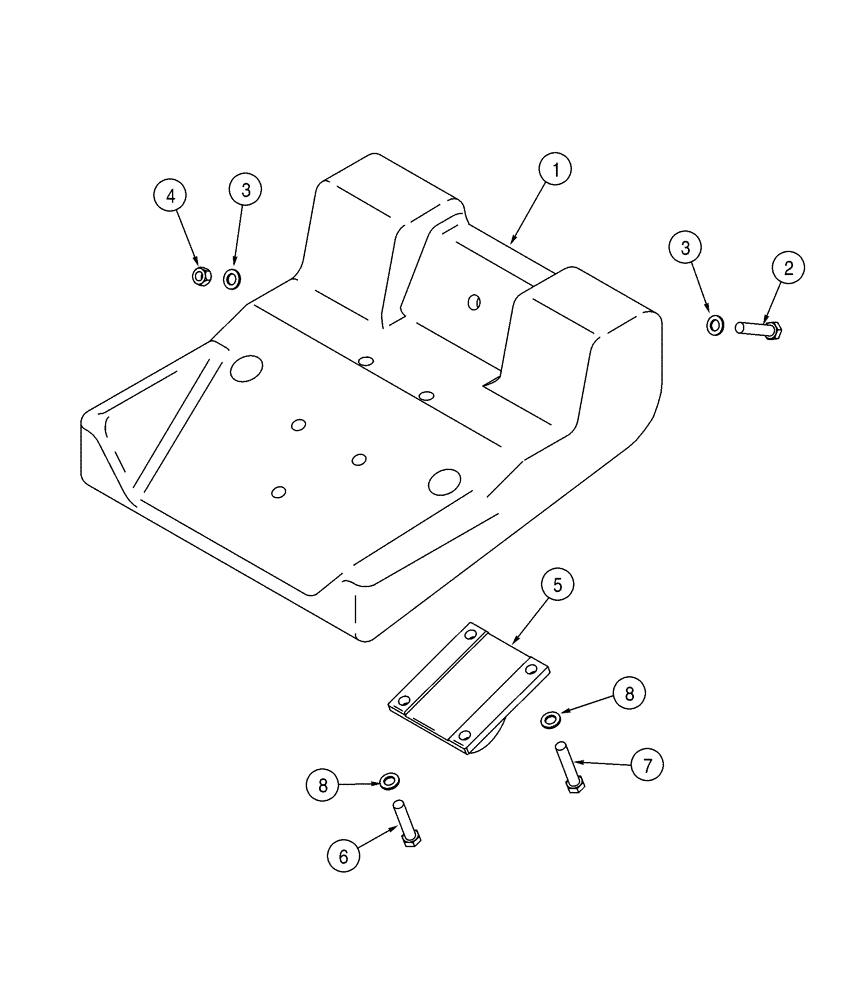

Запчасти Case 1150H (09-05) - COUNTERWEIGHT, FRONT - HOOK, TOWING (09) - CHASSIS

1

376211A1

WEIGHT

Front

1шт.

2

326-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

Replaces 413-1256, 3/4 x 3-1/2; Used on some models

2шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

3шт.

4

425-1012

NUT,3/4"-10, G5

1шт.

5

71671

PLATE ASSY.

If Equipped

1шт.

6

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used without 376211A1

4шт.

7

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

Used with 376211A1; Replaces 413-1264, 3/4 x 4; used on some models

4шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

4шт.
