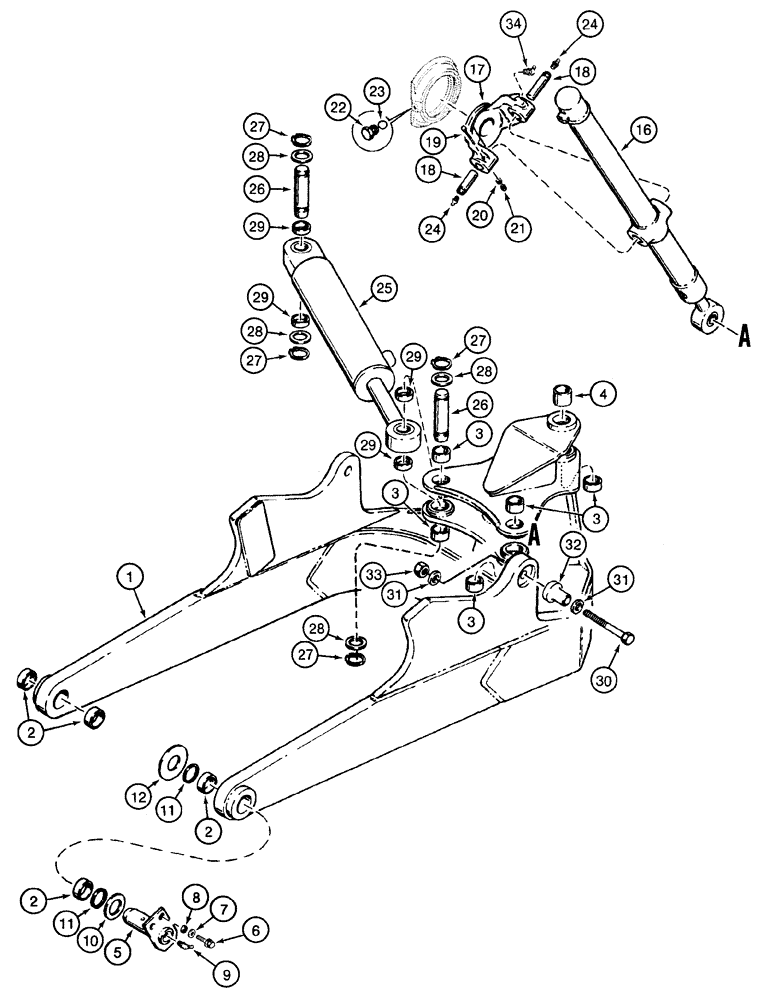

Запчасти Case 1150H (09-01) - FRAME, LIFT - CYLINDERS, MOUNTING (09) - CHASSIS

1

183779A2

CHASSIS

Incl. 2 - 4

1шт.

2

D33635

BUSHING,63.75mm ID x 76.2mm OD x 25.4mm L

2-1/2 x 3 x 1

4шт.

3

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

2 x 2-1/2 x 1-1/4

5шт.

4

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

2 x 2-1/2 x 2

1шт.

5

R53254

PIN,63.5mm OD x 195mm L

2шт.

6

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

4шт.

7

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

4шт.

8

R53353

WASHER,16.13mm ID x 22.23mm OD x 15.3mm L

4шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

10

95-81156

WASHER,2.56" ID x 4" OD x 0.11" Thk

2-9/16 x 4 x 1/8

1шт.

11

L113522

SEAL

Use Loctite No. 271

4шт.

B17500

LOCTITE

Loctite, No. 271, 6 ml

1шт.

12

95-31262

WASHER,2.62" ID x 5" OD x 0.24" Thk

2-5/8 x 5 x 1/4

2шт.

16

G109819

CYLINDER ASSY.,Double Acting, 44.45mm Rod, 817.63mm Stroke

83 ID x 818 mm strk, Lift, See Figure 08-12

2шт.

17

R54810

TRUNNION

Lift Cylinder

2шт.

18

D36176

PIN,38.1mm OD x 63.5mm L

Trunnion

4шт.

19

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

425-106

NUT,3/8"-16, Cl 5

4шт.

22

D28481

PLUG

2шт.

23

211-1024

BALL,3/4" Dia

3/4; 24,CRS

50шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

25

G110702

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 381mm Stroke

127 ID x 381 mm strk, Angle, See Figure 08-14

2шт.

26

R54768

PIN,50.77mm OD x 195.8mm L

Angle Cylinder

4шт.

27

103-16200

SNAP RING,#200, Ext

8шт.

28

495-81282

WASHER,2 1/16" x 3" x .109"

1шт.

29

R53383

WASHER,52.32mm ID x 57.15mm OD x 17mm L

8шт.

30

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

2шт.

31

R58570

SPACER

4шт.

32

R58489

PIN,88.9mm OD x 60.6mm L

2шт.

33

232-41112

NUT,3/4"-10, GC

2шт.

34

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.
