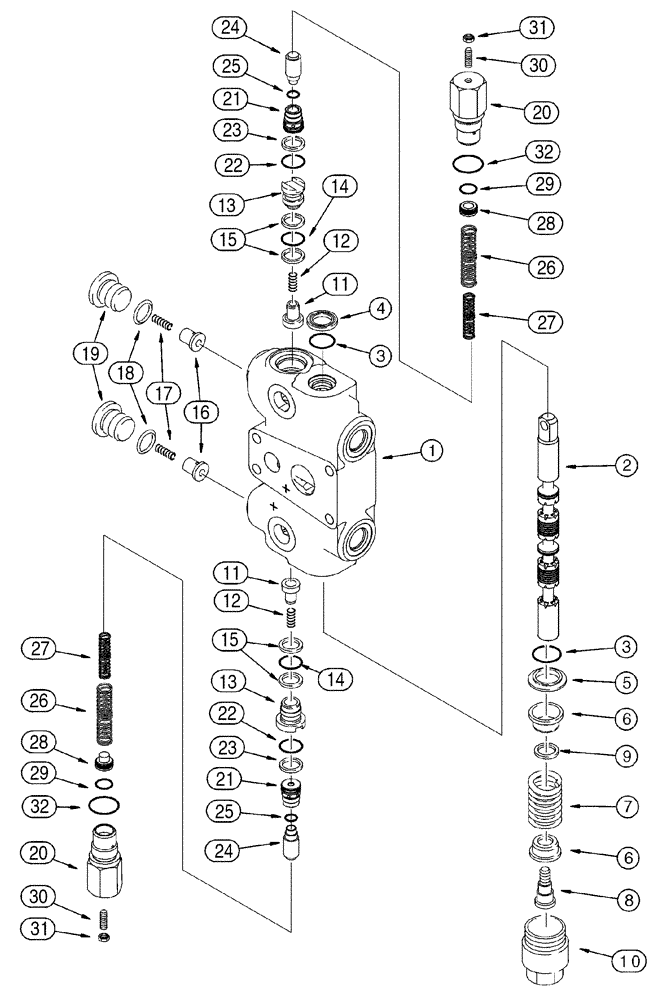

Запчасти Case 1150H (08-25) - SECTION ASSEMBLY - RIPPER (08) - HYDRAULICS

234150A2

HYD VALVE SECTION

Ripper, Incl.1 - 36

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

1994608C1

O-RING,0.737" ID x 0.943" OD x 0.103"

2шт.

4

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

1шт.

6

G33075

RETAINER,12.2mm ID, 27.9mm OD

Centering Spring

2шт.

7

1994596C1

SPRING

Centering

1шт.

8

G106409

SEAT

1шт.

9

332753A1

SPACER

1шт.

10

G33080

CAP

Centering Spring, Spool End, Lower

1шт.

1346219C3

VALVE, CHECK

Load Check, Hollow Poppet Pin, Incl. 11 - 15

2шт.

11

1343777C1

VALVE POPPET,6.9mm ID x 17.5mm OD x 18.8mm L

Hollow Poppet Pin, With Orifice

1шт.

12

1346175C1

SPRING,Compression, 6.6mm OD x 21.93mm L

1шт.

13

1343708C1

PLUG

1шт.

14

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

15

G103862

BACK-UP RING,15.77mm ID x 18.67mm OD x 1.32mm Thk

2шт.

1346221C3

VALVE

Anticavitation, Incl. 16 - 19

2шт.

16

129698A1

VALVE POPPET

1шт.

17

G34458

SPRING,Compression, 5.08mm OD x 27.56mm L

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

19

129699A1

PLUG

1шт.

129861A1

VALVE

Used In Production, For Service Order G110077

2шт.

G110077

KIT

Service Replacement, Incl. 20 - 32, The Pressure Setting Of This Main Relief Valve May Not Be Preset For Your Application. See The 1150H Service Manual For The Correct Setting

2шт.

20

NSS

NOT SOLD SEPARAT

Housing

1шт.

21

NSS

NOT SOLD SEPARAT

Seat

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

23

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

24

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

25

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

26

NSS

NOT SOLD SEPARAT

Spring

1шт.

27

NSS

NOT SOLD SEPARAT

Spring

1шт.

28

NSS

NOT SOLD SEPARAT

Piston

1шт.

29

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

30

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

1шт.

31

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

1346108C2

SEAL KIT

Seal, Includes 3, 4, 14, 15, 22, 23, 32, For Additional Components, See 08-20, 08-21, 08-23, 08-24

1шт.
