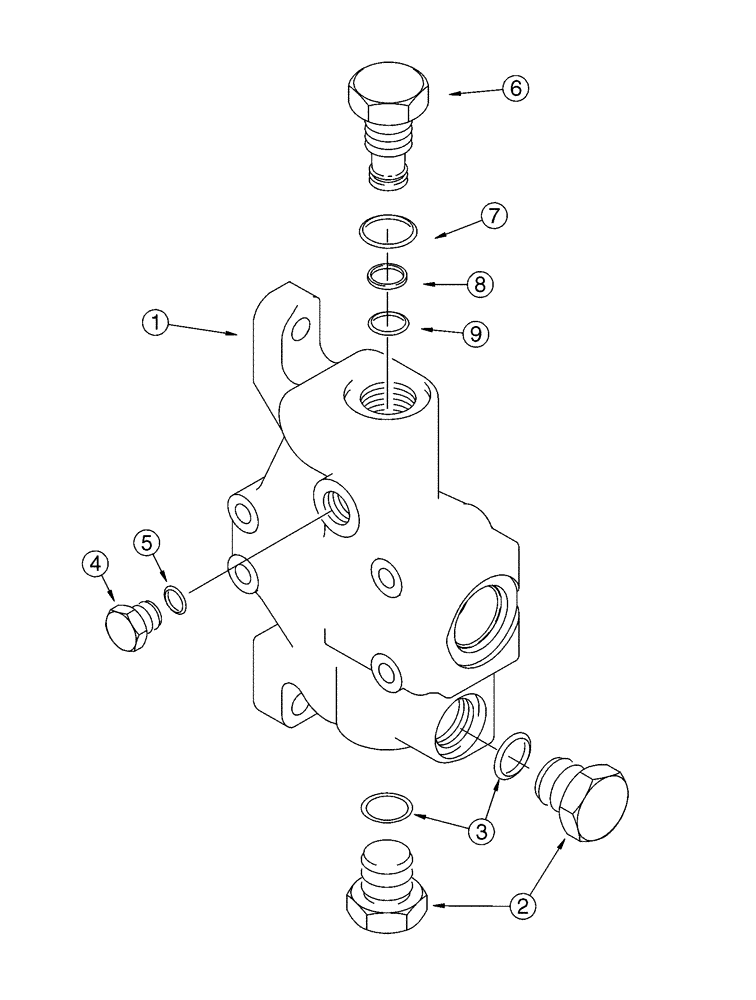

Запчасти Case 1150H (08-22) - SECTION ASSEMBLY - INLET (08) - HYDRAULICS

234153A1

VALVE

Inlet, Incl. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

86625138

PLUG,7/18" - 14

Includes Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

9625178

PLUG,9/16" - 18 ORB

Incl. 5

1шт.

380691A1

PLUG,ORB

Pilot Relief, Incl. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

Body

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

8

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
