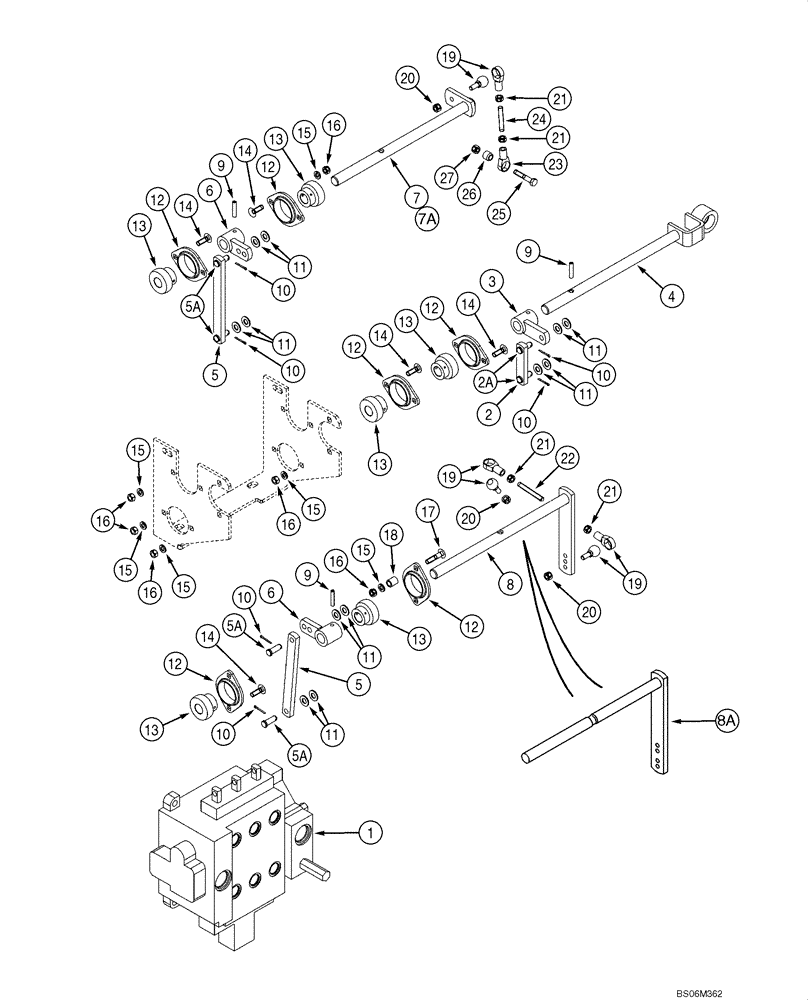

Запчасти Case 1150H (08-17) - CONTROLS - CONTROL VALVE AND LINKAGE (08) - HYDRAULICS

Models With Three Spool Control Valve

1шт.

1

229079A2

VALVE, CONTROL

3 spool, See Figure 08-20

1шт.

2

375188A1

LINK ASSY.

Short, Incl. 2A

1шт.

2a

139220A1

CLEVIS PIN

2шт.

3

372134A1

LINK ASSY.

1шт.

4

371212A1

BAR ASSY.

Tilt Control

1шт.

5

236898A1

LINK

Long, Incl. 5A

2шт.

5a

139220A1

CLEVIS PIN

2шт.

6

233580A1

ARM

2шт.

7

370855A1

SHAFT

Lift Control, 33.5 mm Distance Between Shaft and Bolt Hole

1шт.

7a

370855A2

SHAFT

Lift Control, 28.5 mm Distance Between Shaft and Bolt Hole

1шт.

8

231314A2

SHAFT

Angle Control, 3 Bolt Holes; No Longer Available, Order Ref 8A, 231314A3, 4 Bolt Holes

1шт.

8a

231314A3

SHAFT

4 Bolt Holes

1шт.

9

38-31620

PIN,6.35mm OD x 31.75mm L

3шт.

10

432-612

COTTER PIN,3/32" x 3/4"

6шт.

11

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

12шт.

12

F13360

FLANGE

12шт.

13

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

3/4

6шт.

14

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

10шт.

15

492-11031

LOCK WASHER,5/16"

12шт.

16

425-105

NUT,5/16"-18, G5

12шт.

17

411-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 2

2шт.

18

R56431

SPACER

2шт.

19

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

5/16 NF

3шт.

20

232-4605

LOCK NUT,5/16"-24, GC

3шт.

21

425-115

NUT,5/16"-24, G5

Use Loctite No. 242

4шт.

B17422

LOCTITE

Loctite, No. 242, 50 ml

1шт.

22

S97451

STUD

1шт.

23

R47498

END

Female

1шт.

24

371818A1

STUD

1шт.

25

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

26

374334A1

SPACER

1шт.

27

231-1445

NUT,5/16"-18, GB

1шт.
