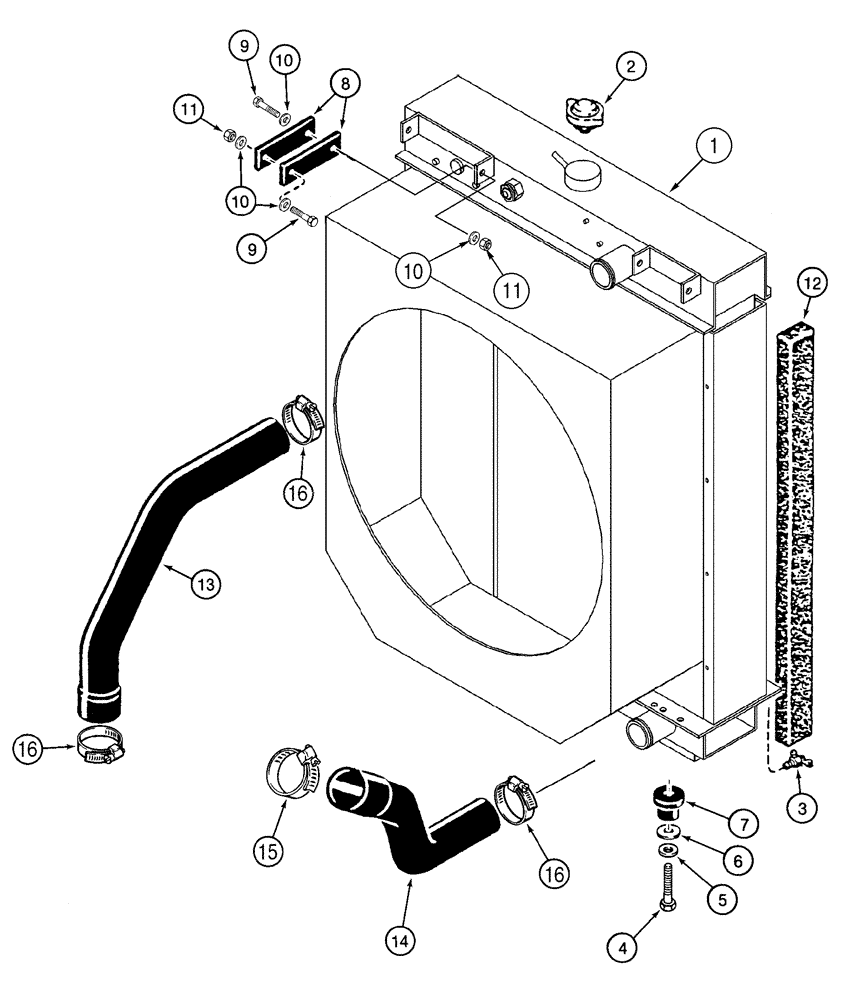

Запчасти Case 1150H (02-03) - RADIATOR - MOUNTING (02) - ENGINE

1

374011A1

RADIATOR

See Figure 02-04

1шт.

2

A170241

RADIATOR CAP

15 psi

1шт.

3

217-92

COCK

1/4

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

2шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

6

D25022

WASHER

2шт.

7

A59514

RUBBER BUSHING,13.49mm ID x 34.29mm OD x 41.1mm L

Rubber

2шт.

8

D73500

STRAP

Mounting

4шт.

9

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

10

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

8шт.

11

231-1446

NUT,3/8" - 16, Gr 5

4шт.

12

R53624

PAD

2 x 31-5/16, Adhesive Back, Radiator Baffle

2шт.

13

R54837

RADIATOR HOSE,45.00 mm ID, 51.00 mm ID x 465.00 mm, SAE 20R4 Class C or SAE 20R4 Class D1

Upper

1шт.

14

R54838

RADIATOR HOSE,51.00 mm ID, 58.00 mm ID x 423.00 mm, SAE 20R4

Lower

1шт.

15

214-3148

HOSE CLAMP,2-1/4" - 3-1/8", HD Worm

1шт.

16

214-3240

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm, W/ Liner

3шт.
