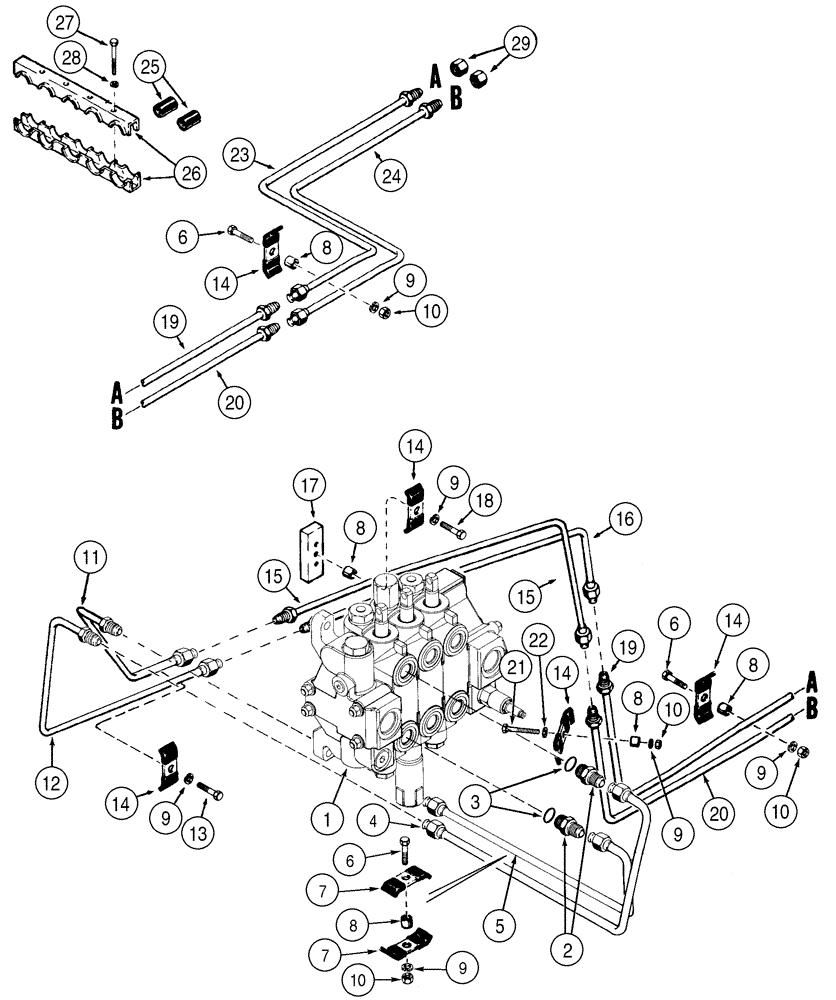

Запчасти Case 1150H (08-08) - HYDRAULICS - TILT CIRCUIT (08) - HYDRAULICS

Control, Serial Range: Valve-Grille

1шт.

1

REF

INSTRUCTION

Valve, Control, See Figure 08-16

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

375605A1

HYD TUBE

At Control Valve, Port A, To Rod End of Cylinder

1шт.

5

375607A1

HYD TUBE

At Control Valve, Port B, To Closed End of Cylinder

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

7

D138055

CLAMP

2шт.

8

D76208

SPACER

5шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

233616A1

TUBE

To Control Valve, B Port

1шт.

12

233614A1

TUBE

To Control Valve, A Port

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

14

D40236

CLAMP

5шт.

15

R30543

TUBE,0.5" OD

Under Floor Plate, B Port

1шт.

16

R29930

TUBE,0.5" OD

Under Floor Plate, A Port

1шт.

17

R27517

BLOCK

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

19

R27428

PIPE,0.5" OD

Along Main Frame, A Port

1шт.

20

R30541

TUBE,0.5" OD x 45.05, 7.45" L

Along Main Frame, B Port

1шт.

21

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

22

D41740

WASHER

3/8

1шт.

23

308167A1

HYD TUBE

To Grille, A Port, To Rod End of Cylinder

1шт.

24

R54441

PIPE,0.5" OD

To Grille, B Port, To Closed End of Cylinder

1шт.

25

R58327

RUBBER BUSHING

Split, on Tube for Clamp Mounting

2шт.

26

R41743

CLAMP

Two Piece

1шт.

27

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

28

492-11031

LOCK WASHER,5/16"

2шт.

29

218-755

CAP,37 Degree, 3/4"-16

If Used

2шт.
