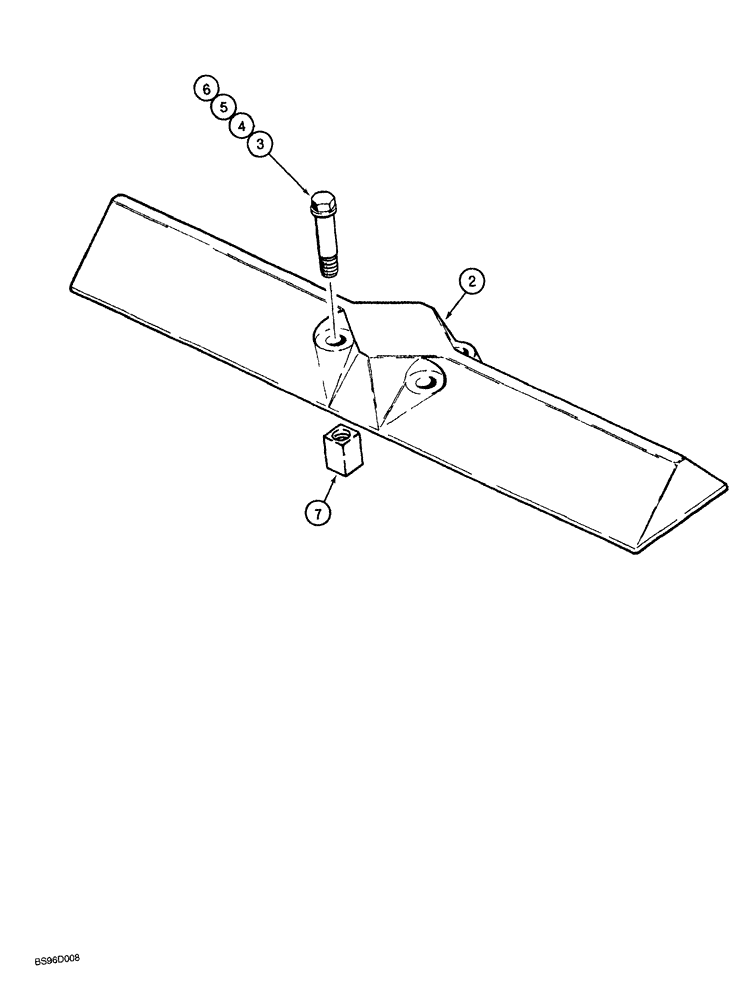

Запчасти Case 1150G (5-026) - SELF-CLEANING TRACK SHOES, CANNOT BE USED ON MODELS WITH A RIPPER 1880 MM (74") GUAGE MODELS ONLY (04) - UNDERCARRIAGE

2

R42736

TRACK SHOE

self-cleaning, 864 mm (34 inch) wide

86шт.

3

R42738

BOLT

special, 86 mm (3 - 3/8 inch) long, used in chains which have one bolt hole in each master link, used in standard and master links

344шт.

4

135778A1

BOLT,Spher Hex, 5/8" - 18 x 82.50mm

BOLT special, 83 mm (3 - 1/4 inch) long, used in chains which have two bolt holes in each master link pair, used on standard links only

336шт.

5

135891A1

BOLT

special, 125 mm (4 - 15/16 inch) long, used in chains which have two bolt holes in each master link pair, used in the master links only

4шт.

6

135892A1

BOLT

special, 116 mm (4 - 1/2 inch) long, used in chains which have two bolt holes in each master link pair, used in the master links only

4шт.

7

R25688

SQUARE NUT

square, special, 5/8 inch NF, not used in master links

336шт.
