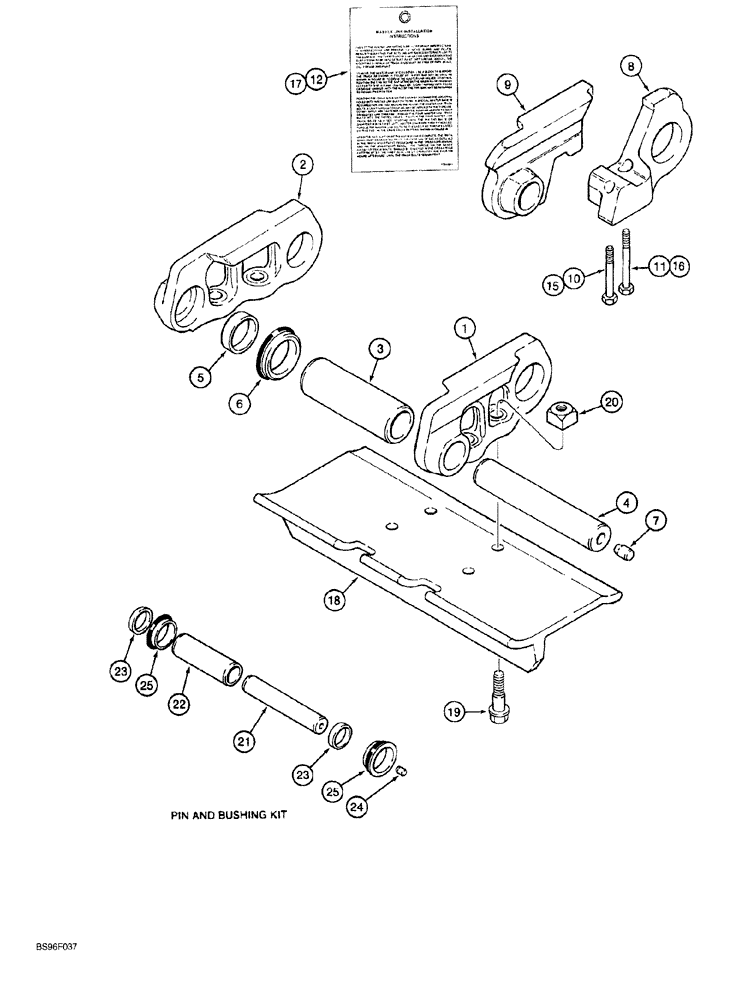

Запчасти Case 1150G (5-022) - CASE LUBRICATED TRACK CHAIN, EACH MASTER LINK PAIR HAS TWO BOLT HOLES (04) - UNDERCARRIAGE

131635A1

CHAIN (CE)

43 unit, 62 inch and 74 inch gauge models, Includes: Ref. 1 - 17

2шт.

1

R51185

DRAG LINK

track, right-hand

42шт.

2

R51186

CHAIN LINK

track, left-hand

42шт.

3

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

track pin, 59 mm (2-5/16 inch) OD

43шт.

4

R51192

PIN,36.58mm OD x 206.5mm L

track

43шт.

5

R51193

SPACER

seal

86шт.

6

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

track pin

86шт.

7

R50441

PLUG

track pin

43шт.

199945A1

LINK

KIT master link, right-hand, Includes: Ref. 8 - 12

1шт.

131629A1

LINK

ASSY., master, right-hand, Includes: Ref. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right-hand

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right-hand

1шт.

10

135778A1

BOLT,Spher Hex, 5/8" - 18 x 82.50mm

BOLT special, 83 mm (3 - 1/4 inch) long, used on master link only

1шт.

11

135779A1

BOLT,Spher Hex, 5/8" - 18 x 92mm

BOLT special, 92 mm (3 - 5/8 inch) long, used on master link only

1шт.

12

178328A1

TAG

installation instructions

1шт.

199944A1

LINK

KIT master, left-hand, Includes: Ref. 13 - 17

1шт.

131628A1

LINK

ASSY., master, left-hand, Includes: Ref. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

14

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right-hand, not shown

1шт.

15

135778A1

BOLT,Spher Hex, 5/8" - 18 x 82.50mm

BOLT special, 83 mm (3 - 1/4 inch) long, used on master link only

1шт.

16

135779A1

BOLT,Spher Hex, 5/8" - 18 x 92mm

BOLT special, 92 mm (3 - 5/8 inch) long, used on master link only

1шт.

17

178328A1

TAG

installation instructions

1шт.

18

REF

INSTRUCTION

SHOE track, see Figures 5-024 and 5-026 for options

86шт.

19

R27166

BOLT

special, 55 mm long, use with all track shoes except self-cleaning, not used on master link

336шт.

19

REF

INSTRUCTION

BOLT special, used with self-cleaning track shoes only, see Figure 5-026

336шт.

20

R25688

SQUARE NUT

square, special, 5/8 inch NF, not used on master link bolts

336шт.

R51731

KIT

pin and bushing, services complete track chain, both sides of tractor, 43 unit chain assemblies, Includes: Ref. 21 - 25 and instruction sheet

1шт.

21

R51192

PIN,36.58mm OD x 206.5mm L

track

86шт.

22

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

track pin, 59 mm (2 - 5/16 inch) OD

86шт.

23

R51193

SPACER

seal

172шт.

24

R50441

PLUG

track pin

86шт.

25

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

track pin

172шт.
