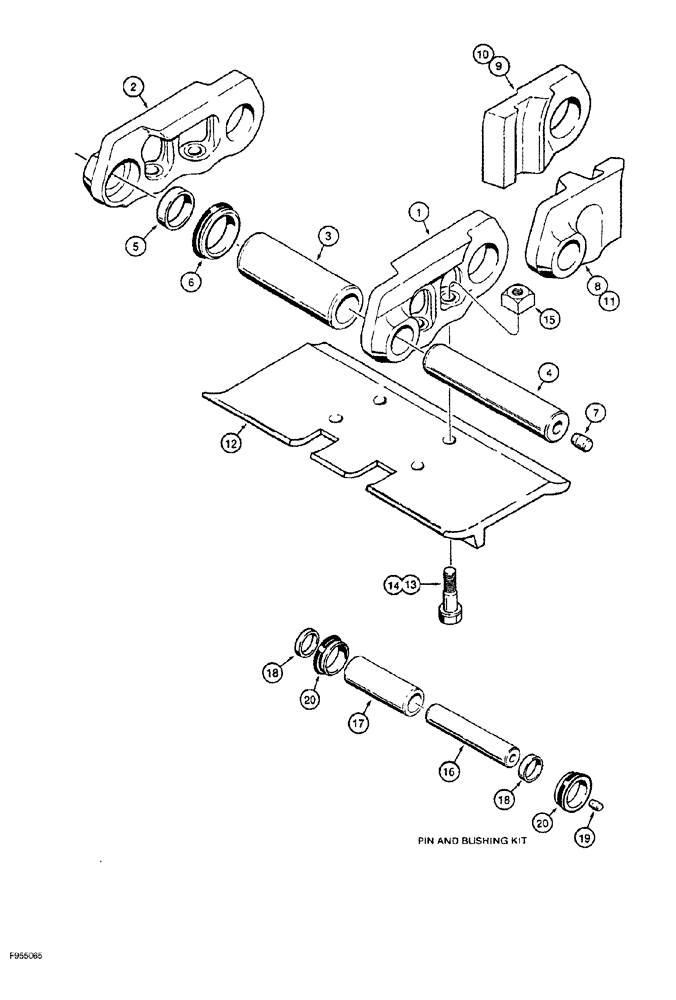

Запчасти Case 1150G (5-020) - CASE LUBRICATED TRACK CHAIN, EACH MASTER LINK HAS ONE BOLT HOLE (04) - UNDERCARRIAGE

R56707

CHAIN (CE)

43 unit, 74 inch gauge LGP and long track dozer models, Includes: Ref. 1 - 11

2шт.

1

R51185

DRAG LINK

track, right-hand

42шт.

2

R51186

CHAIN LINK

track, left-hand

42шт.

3

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

track pin, 59 mm (2 - 5/16 inch) OD

43шт.

4

R51192

PIN,36.58mm OD x 206.5mm L

track

43шт.

5

R51193

SPACER

seal

86шт.

6

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

track pin

86шт.

7

R50441

PLUG

track pin

43шт.

R56709

LINK

ASSY., master, right-hand, Includes: Ref. 8, 9

1шт.

If not available, order one each of 199944A1 left-hand and 199945A1 right-hand master link kits shown on Figure 5-022.

1шт.

8

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, right-hand

1шт.

9

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right-hand

1шт.

R56708

LINK

ASSY., master, left-hand, Includes: Ref. 10, 11

1шт.

If not available, order one each of 199944A1 left-hand and 199945A1 right-hand master link kits shown on Figure 5-022.

1шт.

10

NSS

NOT SOLD SEPARAT

LINK track, master, fits over track pin on outside of regular track link, left-hand, not shown

1шт.

11

NSS

NOT SOLD SEPARAT

LINK track, master, fits over bushing on inside of regular track link, right-hand, not shown

1шт.

12

REF

INSTRUCTION

SHOE track, see Figures 5-024 and 5-026 for options

86шт.

13

R27166

BOLT

special, 55 mm long, use with all track shoes except self-cleaning

344шт.

14

REF

INSTRUCTION

BOLT special, use with self-cleaning track shoes only, see Figure 5-026

344шт.

15

R25688

SQUARE NUT

square, special, 5/8 inch NF, not used on master link bolts

336шт.

R51731

KIT

pin and bushing, services complete track chain, both sides of tractor, 43 unit chain assemblies, Includes: Ref. 16 - 20 and instruction sheet

1шт.

16

R51192

PIN,36.58mm OD x 206.5mm L

track

86шт.

17

R51191

BUSHING,36.9mm ID x 58.77mm OD x 128.8mm L

track pin, 59 mm (2 - 5/16 inch) OD

86шт.

18

R51193

SPACER

seal

172шт.

19

R50441

PLUG

track pin

86шт.

20

R51194

SEAL,42.1mm ID x 59mm OD x 12.5mm Thk

track pin

172шт.
