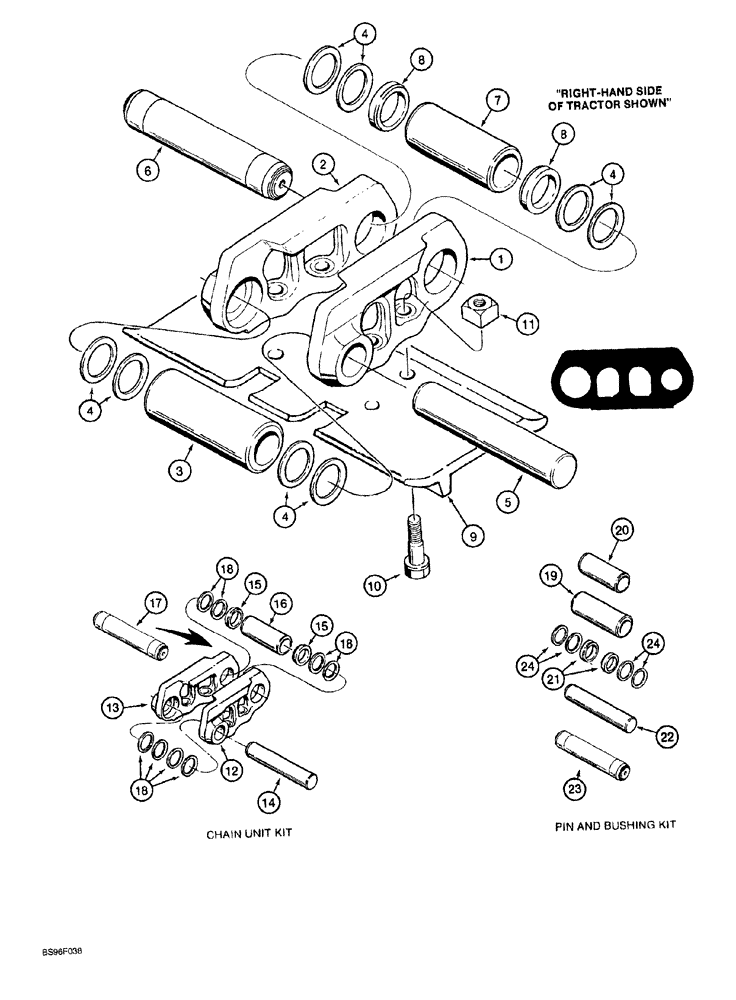

Запчасти Case 1150G (5-018) - SEALED TRACK CHAIN, OPTIONAL (04) - UNDERCARRIAGE

R56724

CHAIN (CE)

43 unit, loader models, 62 inch gauge long track dozer models and 74 inch gauge wide track dozer models, Includes: Ref. 1 - 8

2шт.

1

R51185

DRAG LINK

track, right-hand

43шт.

2

R51186

CHAIN LINK

track, left-hand

43шт.

3

R51195

BUSHING

standard pin, 59 mm (2 - 5/16 inch) OD

42шт.

4

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

track

172шт.

5

S108923

PIN

Standard

42шт.

6

R54282

SERVICE KIT

master, 0.076 mm (0.003 inch) oversize

1шт.

7

R51196

BUSHING

master pin

1шт.

8

R51199

SPACER

master bushing

2шт.

9

REF

INSTRUCTION

SHOE track, see Figures 5-024 and 5-026 for options

86шт.

10

R27166

BOLT

special, 55 mm long

344шт.

11

R25688

SQUARE NUT

square, special, 5/8 inch NF

344шт.

R51729

LINK ASSY.

KIT chain unit, includes standard and master track pins, Includes: Ref. 12 - 18 and instruction sheet

1шт.

12

R51185

DRAG LINK

track, right-hand

1шт.

13

R51186

CHAIN LINK

track, left-hand

1шт.

14

S108923

PIN

Standard

2шт.

15

R51199

SPACER

master bushing, used with master pin

2шт.

16

R51196

BUSHING

master pin

1шт.

17

R54282

SERVICE KIT

master, 0.076 mm (0.003 inch) oversize

1шт.

18

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

track

8шт.

R56727

KIT

pin and bushing, services complete track chain, both sides of tractor, Includes: Ref. 19 - 24 and instruction sheet

1шт.

19

R51195

BUSHING

standard pin, 59 mm (2 - 5/16 inch) OD, long

84шт.

20

R51196

BUSHING

master pin, short

2шт.

21

R51199

SPACER

master bushing

4шт.

22

S108923

PIN

Standard

84шт.

23

R54282

SERVICE KIT

master, 0.076 mm (0.003 inch) oversize

2шт.

24

R51201

BELLEVILLE WASHER,37.299mm ID x 56.7mm OD x 1.5mm Thk

track

344шт.
