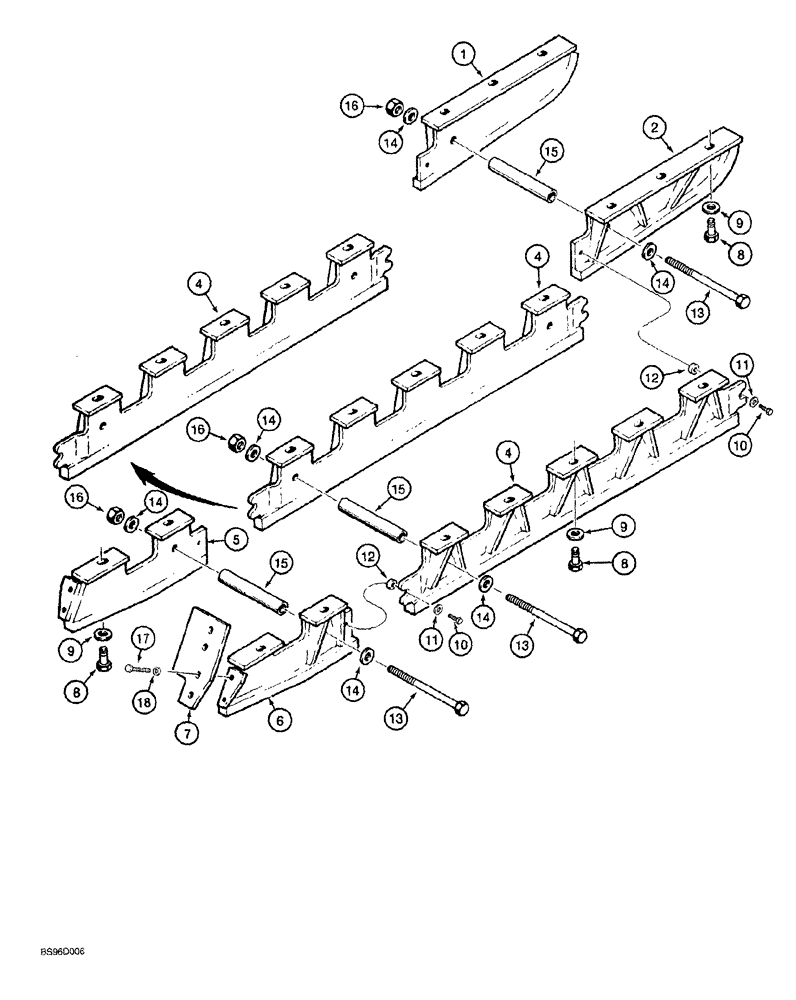

Запчасти Case 1150G (5-016) - TRACK GUARDS (04) - UNDERCARRIAGE

1

R44377

PROTECTOR

GUARD track, front, left-hand track, outer, right-hand track, inner

2шт.

2

R44378

PROTECTOR

GUARD track, front, right-hand track, outer, left-hand track, inner

2шт.

4

R44373

PROTECTOR

GUARD track, center

4шт.

5

R44385

GUIDE

GUARD track, rear, left-hand track, outer, right-hand track, inner

2шт.

6

R44386

GUIDE

GUARD track, rear, right-hand track, outer, left-hand track, inner

2шт.

7

R46471

COVER

rear, track guard

4шт.

8

113-2704

LOCK BOLT,Locking, 3/4"-10 x 1 1/2", G5, Full Thd

Use with blue Loctite No. 242, shown below

40шт.

9

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch

40шт.

10

106-9820

LOCK BOLT,Locking, 1/2"-13 x 1 1/4", G5, Full Thd

8шт.

11

D64050

WASHER

flat, special, 1/2 inch

8шт.

12

R43651

SPACER

SPACER track guards

8шт.

13

413-12176

BOLT,3/4"-10 x 11", Gr 5

BOLT hex, 3/4 NC x 11 inch

8шт.

14

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, hardened

16шт.

15

R27555

SPACER

SPACER track guards

8шт.

16

231-41112

LOCK NUT,3/4"-10, GB

8шт.

17

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

16шт.

18

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

flat, 21/32 x 1 - 5/16 x 5/32 inch, hardened

16шт.

B17577

LOCTITE

No. 242, blue, 6 ml tube, not shown

1шт.
