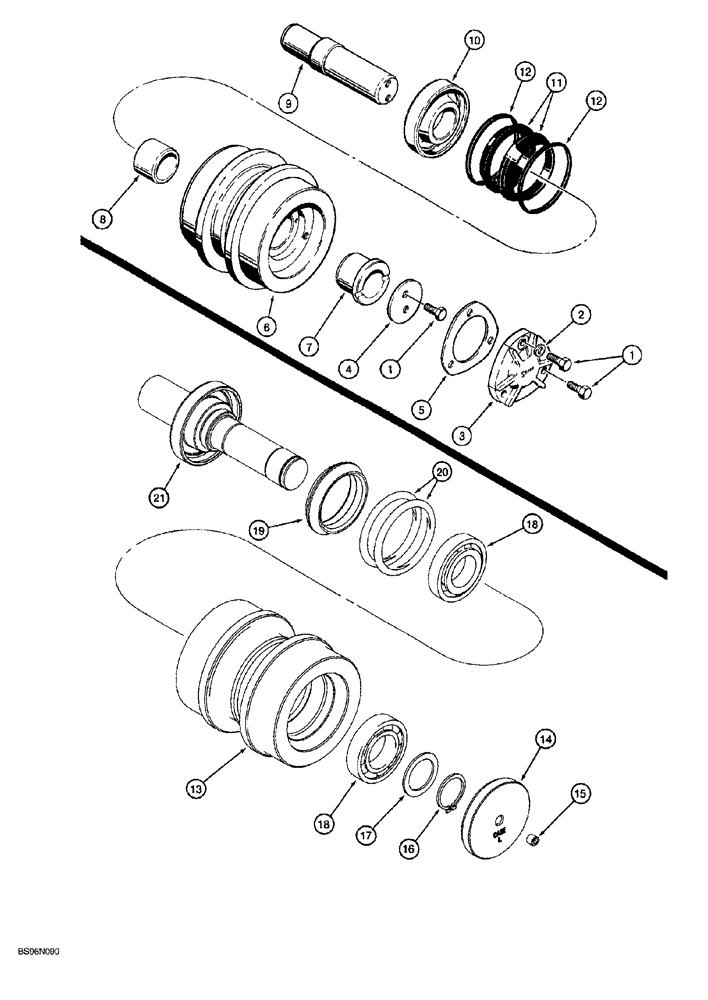

Запчасти Case 1150G (5-012) - CARRIER ROLLER (04) - UNDERCARRIAGE

R33594

ROLLER

ASSY., carrier, track, Includes: Ref. 1 - 12, no longer available, order 241263A1

4шт.

1

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

5шт.

2

D35288

WASHER

copper

1шт.

3

R33602

CAP

COVER roller

1шт.

4

R33601

RETAINER

shaft

1шт.

5

R33606

GASKET

cover

1шт.

R33596

HUB CARRIER

ASSY., roller, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HUB roller

1шт.

7

R33556

BUSHING,50.28mm ID x 70.5mm OD x 46mm L

flanged, outer

1шт.

8

R33597

BUSHING

inner

1шт.

R33600

SHAFT

ASSY., roller, Includes: Ref. 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT roller

1шт.

10

R33599

RETAINER

seal

1шт.

R33607

SEAL

ASSY., face, Includes: Ref. 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

RING metal

2шт.

12

N6847

O-RING,75mm ID x 8mm Width

face seal

2шт.

241263A1

ROLLER ASSY.

carrier, track, Includes: Ref. 13 - 21

4шт.

13

NSS

NOT SOLD SEPARAT

HUB roller

1шт.

14

NSS

NOT SOLD SEPARAT

COVER end, roller

1шт.

15

NSS

NOT SOLD SEPARAT

PLUG hex socket

1шт.

16

NSS

NOT SOLD SEPARAT

RING external heavy retaining, No. 40

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER roller

1шт.

18

NSS

NOT SOLD SEPARAT

BEARING tapered roller

2шт.

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY, face, Includes: Ref. 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

RING metal

2шт.

20

NSS

NOT SOLD SEPARAT

O-RING face seal

2шт.

21

241265A1

SHAFT ASSY.

roller, for service order 241263A1

1шт.
