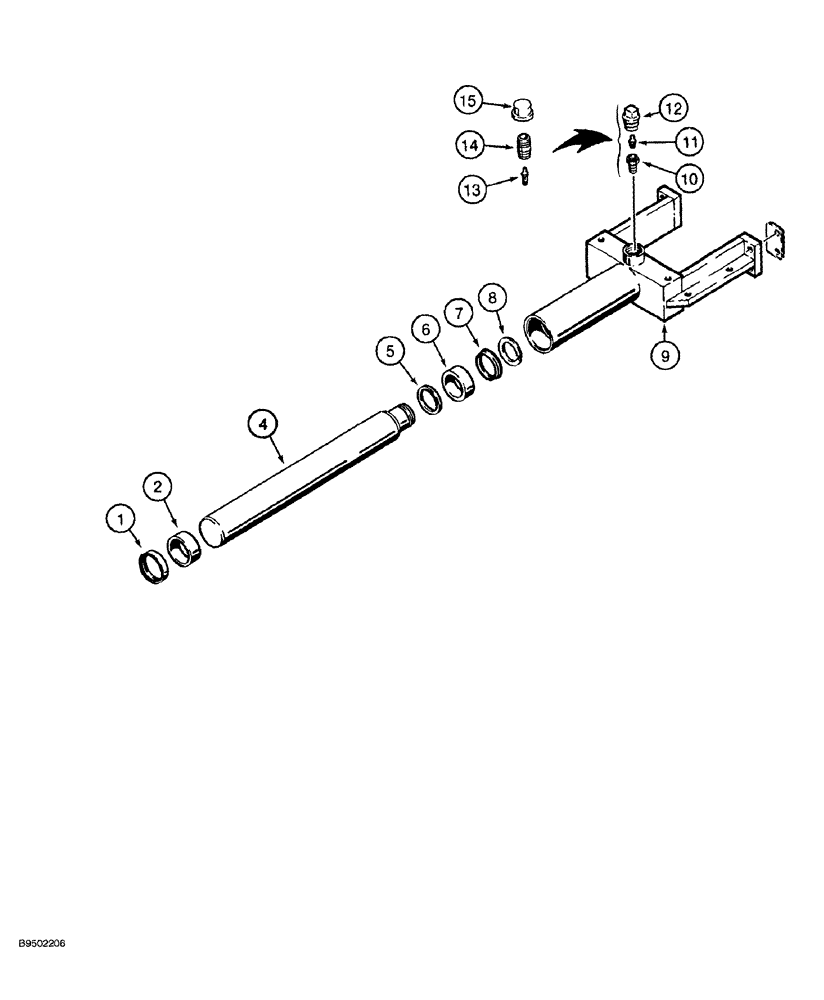

Запчасти Case 1150G (5-008) - TRACK ADJUSTER ASSEMBLY (04) - UNDERCARRIAGE

R45460

TENSIONER

ADJUSTER ASSY., track, Includes: Ref. 1 - 12

2шт.

1

D95149

PACKING RING,60.24mm ID x 73.05mm OD x 7.92mm Thk

WIPER piston rod

1шт.

2

D30374

RING,60.43mm ID x 73.15mm OD x 25.4mm L

wear, recoil housing end

1шт.

4

143807A1

PISTON

ROD, 732 mm (28-3/4 inch) long, Replaces: R45459

1шт.

5

R30202

RING,54.101mm ID x 65.1mm OD x 5.08mm Thk

backup, bushing

1шт.

6

R25663

BUSHING,53.98mm ID x 66.62mm OD x 25.4mm L

seal, backup, piston rod, yoke end

1шт.

7

R25706

SEAL,53.9mm ID x 66.75mm OD x 10.69mm Thk

U-cup, piston rod

1шт.

8

101-11212

SNAP RING,#212, 1.997", Ext

Piston rod

1шт.

9

R45458

YOKE

YOKE track adjuster

1шт.

10

D35287

CHECK VALVE,5/8" - 18

check, track adjuster

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Used without track adjuster cover

1шт.

12

221-29

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

1шт.

13

219-5

LUBE NIPPLE,1/8" - 27 NPTF

grease, straight, 3/16 drive type x 23/32 inch, long, used with track adjuster cover

2шт.

14

221-1262

FITTING

straight, 1-1/4 PT x 2 inch, used with track adjuster cover

2шт.

15

221-528

CAP,1 1/4" NPT

pipe, 1-1/4 inch, used with track adjuster cover

2шт.
