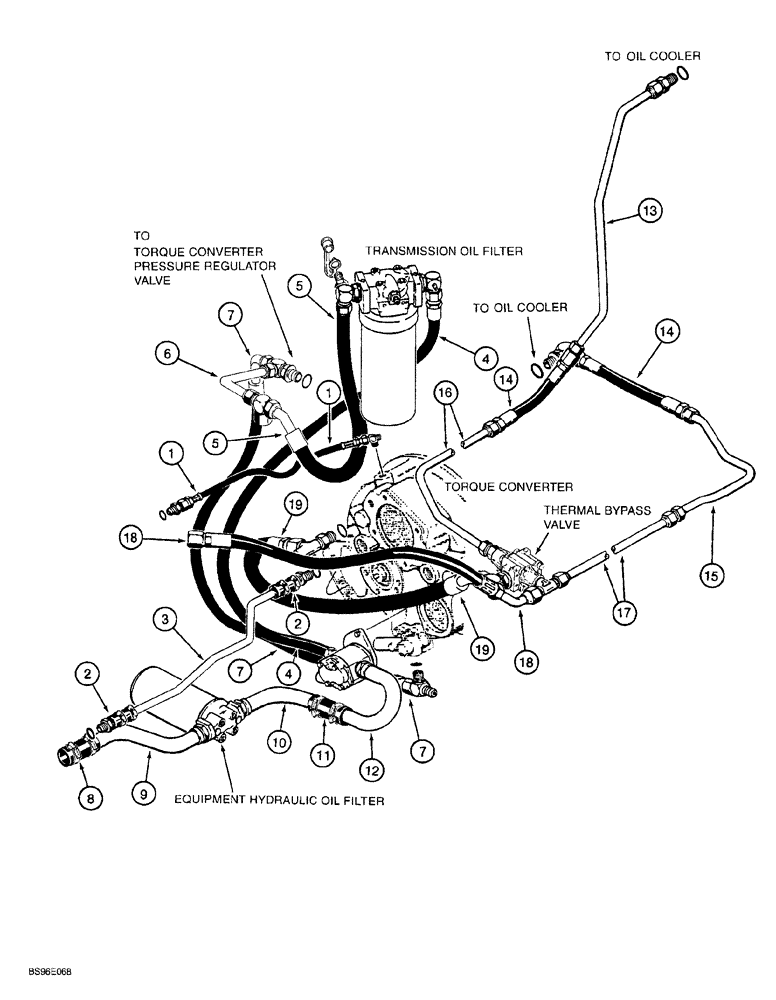

Запчасти Case 1150G (1-010) - PICTORAL INDEX - TRANSMISSION HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Hose, torque converter vent to transmission, see page 6-35

1шт.

2

Hose, to transmission, see page 6-35

1шт.

3

Hose, to transmission, see page 6-35

1шт.

4

Hose, transmission charging pump to filter, see page 6-35

1шт.

5

Hose, to transmission control valve, see page 6-35

1шт.

6

Tube, control valve to range valve, see page 6-35

1шт.

7

Hose to torque converter pressure regulator valve, see page 6-35

1шт.

8

Hose at ttransmission, see page 6-35

1шт.

9

Tube from transmission, see page 6-35

1шт.

10

Tube from filter, see page 6-35

1шт.

11

Hose to transmission charging pump, see page 6-35

1шт.

12

Tube to transmission charging pump, see page 6-35

1шт.

13

Tube to top of radiator, see page 6-39, 6-41

1шт.

14

Hose, tube connecting, see page 6-39, 6-41

1шт.

15

Tube from lower front of radiator, see page 6-39, 6-41

1шт.

16

Tube from oil cooler at thermo-bypass valve, see page 6-39, 6-41

1шт.

17

Tube, oil cooler to tee at by-pass valve, see page 6-39, 6-41

1шт.

18

Hose to clutch lube oil block on front of transmission, return, see page 6-39, 6-41

1шт.

19

Hose, thermal bypass valve to torque converter port, see page 6-39, 6-41

1шт.
