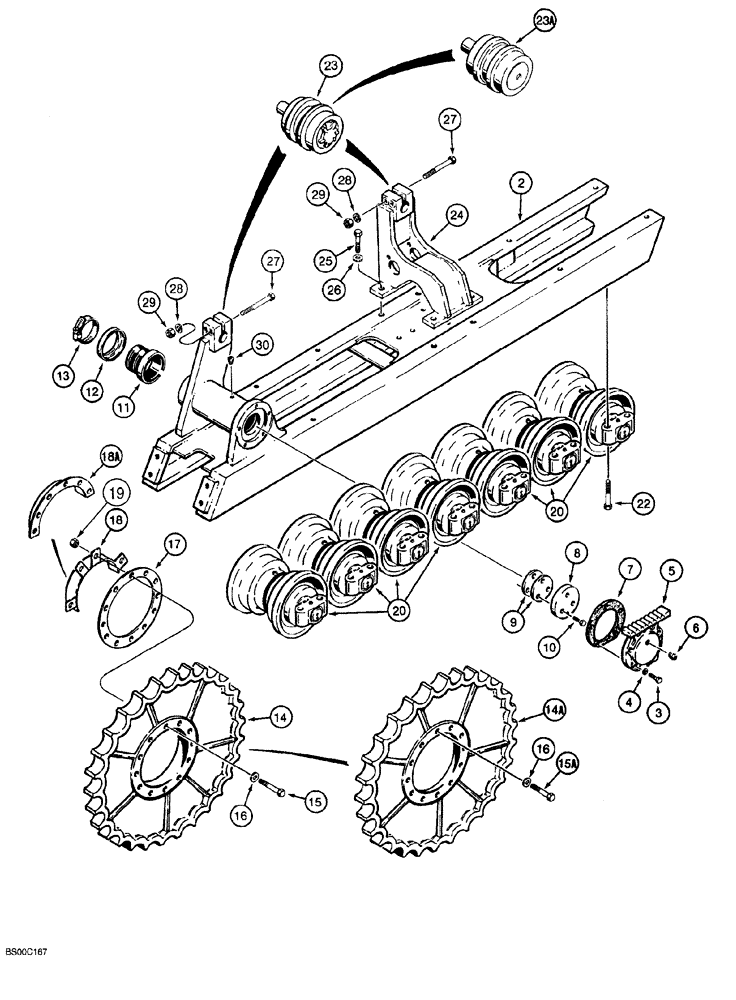

Запчасти Case 1150G (5-002) - TRACK FRAME, SPROCKET AND ROLLERS (04) - UNDERCARRIAGE

1

R55873

FRAME

track, left-hand, 62 and 74 inch gauge, long track dozer models, not shown

1шт.

2

R55872

FRAME

track, right-hand, 62 and 74 inch gauge, long track dozer models

1шт.

3

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

10шт.

5

R46782

COVER

ASSY., pivot shaft, Includes: Ref. 6

2шт.

6

221-841

PLUG

hex socket, 1/4 inch PT

1шт.

7

R27377

GASKET,0.38mm Thk

pivot shaft cover

1шт.

8

R36949

PLATE

end, pivot shaft

2шт.

9

R27540

SHIM,.031" Thk

Pivot shaft end plate

1шт.

10

25334R1

BOLT,Hex, 5/8" - 18 x 1 3/4", Gr 8

hex, 5/8 NF x 1-3/4 inch, grade 8

6шт.

11

R41714

SEAL

SEAL pivot shaft

2шт.

12

R41713

GUARD

seal, pivot shaft

2шт.

13

214-3164

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

adj., 3-1/4 - 4-1/8 inch dia., pivot shaft

2шт.

14

R53119

DRIVE SPROCKET

track drive, at mounting surface, 74 inch gauge, LGP models

2шт.

14a

R53118

DRIVE SPROCKET

track drive, 13/16 inch wide, 62 inch gauge, standard models

2шт.

15

R31277

BOLT

hex, special, 3/4 NC x 4-1/4 inch, grade 8, 74 inch gauge, LGP models

24шт.

15a

R27242

BOLT

hex, special, 3/4 NC x 3 inch, grade 8, 62 inch gauge, standard models

24шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, hardened

24шт.

17

R27241

SHIM,1/32" Thk

Sprocket

1шт.

18

R36703

GUARD

final drive shaft, no longer available, order Ref. 18A, 192443A1

4шт.

18a

192443A1

GUARD

final drive shaft

4шт.

19

232-41112

NUT,3/4"-10, GC

24шт.

20

R33571

ROLLER

ASSY., track, single flange, see Figure 5-014

14шт.

22

113-2707

LOCK BOLT,Locking, 3/4"-10 x 3", G5

56шт.

23

R33594

ROLLER

ASSY., carrier, see Figure 5-012, no longer available, order 241263A1

4шт.

23a

241263A1

ROLLER ASSY.

carrier, see Figure 5-012

4шт.

24

R45454

SUPPORT

BRACKET mounting, and equalizer beam mounting

2шт.

25

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

(Replaces 413-1232)

8шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

flat, special, 3/4 inch, hardened

8шт.

27

326-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

8шт.

28

492-11062

BEARING WASHER,5/8"

8шт.

29

429-1010

NUT,5/8"-11, G8

8шт.

30

221-841

PLUG

hex socket, 1/4 inch PT

2шт.
