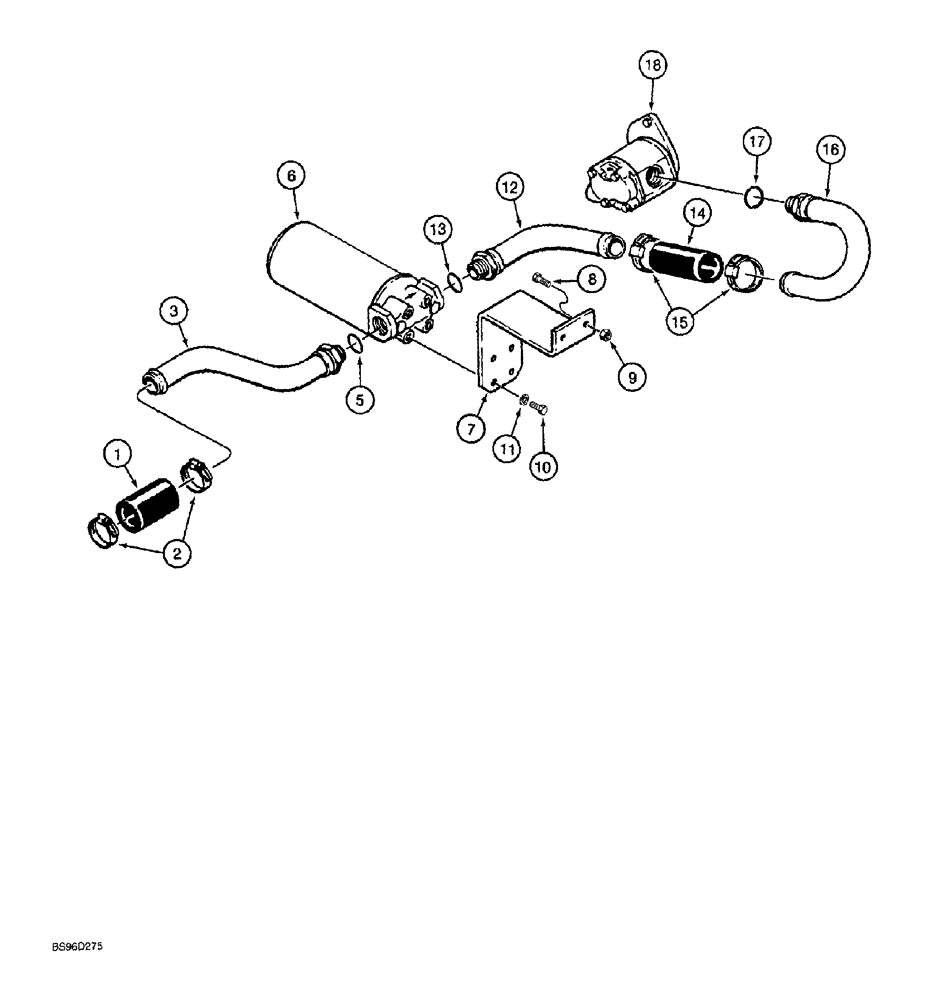

Запчасти Case 1150G (6-036) - TRANSMISSION HYDRAULIC CIRCUIT, TRANSMISSION TO CHARGING PUMP, SUCTION LINE (03) - TRANSMISSION

1

R43918

HOSE

114 mm (4-1/2 inch) long, cut from R45924 bulk hose, at transmission, see below

1шт.

2

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj., 1-1/4 - 2-1/8 inch dia., heavy duty

2шт.

3

R52172

PIPE,38.1 mm OD

TUBE, from transmission

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

6

R50627

FILTER

ASSY., suction line, see Figure 6-042

1шт.

7

R52169

SUPPORT

BRACKET filter mounting

1шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

9

231-1446

NUT,3/8" - 16, Gr 5

2шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

11

492-11031

LOCK WASHER,5/16"

4шт.

12

R52211

PIPE,38.1 mm OD x 117, 138 mm L

TUBE from filter

1шт.

13

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

14

R43918

HOSE

114 mm (4-1/2 inch) long, cut from R45924 bulk hose, see below, to transmission charging pump, Replaces: R44004

1шт.

15

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adj., 1-1/4 - 2-1/8 inch dia., heavy duty

2шт.

16

R27913

TUBE,38.1 mm OD x 152.4, 114.3 mm L

to transmission charging pump

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

R25586

PUMP

ASSY., transmission charging, see Figure 6-044, mounting parts on Figure 6-034

1шт.

R25586R

REMAN-HYD PUMP

1150G (2/59-)

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

R45924

HOSE

38 (1-1/2) ID x 241 mm (9-1/2 inch) long

1шт.
