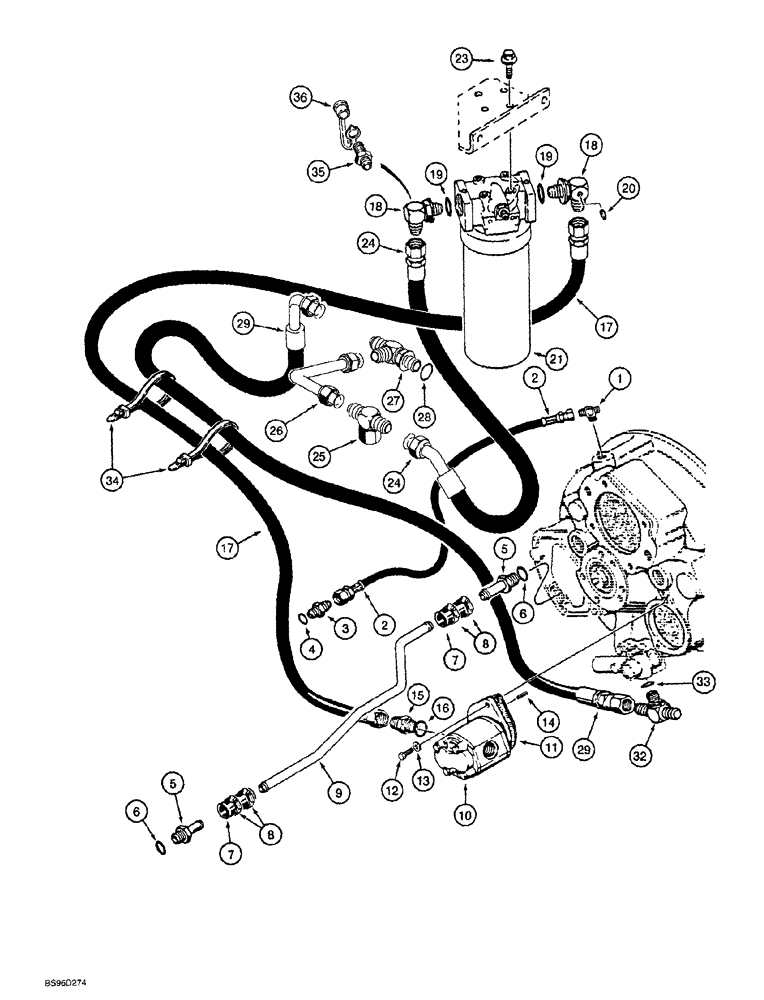

Запчасти Case 1150G (6-034) - TRANSMISSION HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (03) - TRANSMISSION

1

218-613

TEE,9/16"-18, 37 Degree x 1/4"-18, NPTF Run

9/16-18 flare branch x flare x 1/4 inch PT, see Ref. 11 on Figure 7-008 for attaching hose and brrake valve

1шт.

2

A50789

HYDRAULIC HOSE,6.35 mm ID x 812.80 mm, SAE 100R1

Torque converter vent to transmission

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

At transmission housing, Incl. Ref. 4

1шт.

5

217-393

FITTING,3/4" Hose Barb x 1-5/16" - 12 Male ORB

ADAPTER straight, 3/4 stem end x 1-5/16-12 inch adj. O-ring boss, Includes: Ref. 6

2шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

R20804

HOSE,19.00 mm ID x 76.20 mm, SAE 100R3

Cut From S118382X Bulk Hose, See Below

2шт.

8

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

4шт.

9

R54215

PIPE,0.75" OD

TUBE, to transmission, lower drain

1шт.

10

R25586

PUMP

ASSY., see Figure 6-044

1шт.

R25586R

REMAN-HYD PUMP

1150G (2/59-)

1шт.

R25586C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

D32000

GASKET

pump

1шт.

12

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

13

D32117

COPPER WASHER

2шт.

14

38-11208

LOCK PIN,3/16" x 1/2", Slotted

1шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, male, transmission charging pump outlet, Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

R49572

HOSE

2286 mm (90 inch) long, transmission charging, Serial Range: pump-filter

1шт.

18

R49557

FITTING

ELBOW, 90°, with check port, special, adjustable, Includes: Ref. 19

2шт.

19

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

20

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

1шт.

21

R54348

FILTER ASSY

oil, see Figure 6-042

1шт.

23

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

24

177160A1

HOSE ASSY.

650 mm (25-5/8 inch) long, to transmission control valve

1шт.

25

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

1-1/16-12 inch swivel branch x flare x flare, attaches to Ref. 11 adapter at high/low range valve on Figure 6-031A

1шт.

26

140926A1

TUBE,19.05 mm OD, 139, 83.4 mm Length

control valve to range valve, see Figure 6-031A

1шт.

27

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

TEE, 1-1/16-12 flare branch x flare x 7/8-14 inch adj. O-ring, Includes: Ref. 28

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

29

177131A1

HOSE ASSY.

to torque converter pressure regulator valve

1шт.

32

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8-14 inch adj O-ring branch x flare x flare, at torque converter pressure regulator valve, see Ref. 14 on Figure 7-008 for attaching hose, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, hoses

2шт.

35

H434164

COUPLING

quick check

1шт.

36

H434163

DUST CAP

1шт.

S118382X

LARGE HOSE

HOSE,LARGE bulk, 19 (3/4) x 32 (1-1/4) x 6096 mm (240 inch) long, sold by the foot

1шт.
