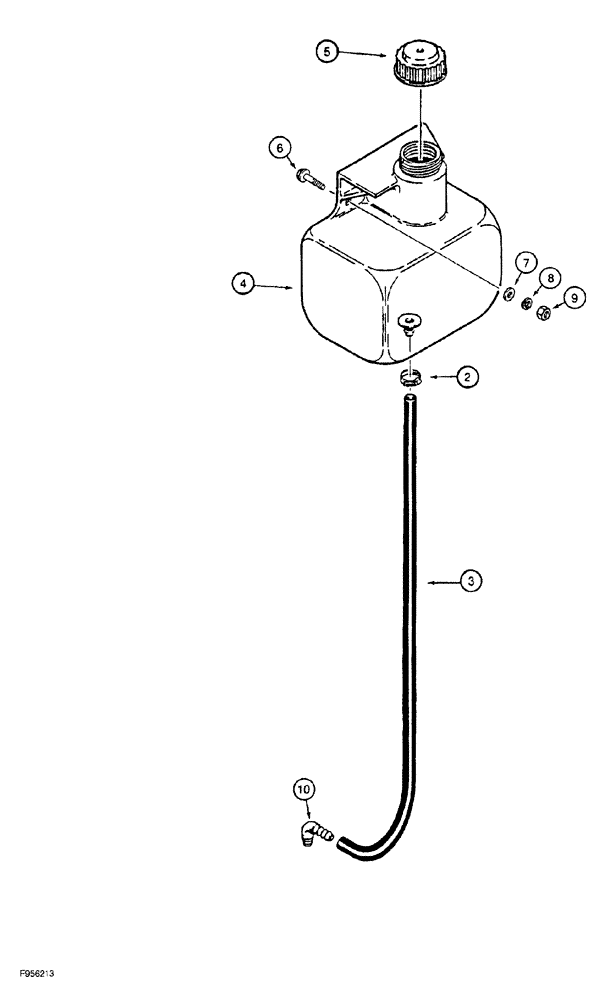

Запчасти Case 1150G (6-032) - TRANSMISSION FLUID RECOVERY BOTTLE (03) - TRANSMISSION

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj, at recovery bottle

1шт.

3

R44038

LARGE HOSE

HOSE,LARGE 965 mm (38 inch) long, cut from A21561 bulk hose, transmission, to recovery bottle, see below

1шт.

4

R50467

RESERVOIR

BOTTLE plastic, transmission fluid recovery, mounted above equipment control valve

1шт.

5

R50468

CAP

CAP bottle, recovery

1шт.

6

121-107

SERRATED BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

7

495-11034

WASHER,5/16", SAE

(flat, 11/32" x 11/16" x 1/16")

2шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

217-294

FITTING,90 Degree Elbow, 1/4" Hose Barb x 1/4" Male NPTF

ELBOW, 90°, 1/4 barb end x 1/4 inch PT

1шт.

A21561X

HOSE,6.35mm ID x 7620mm L

bulk, 6 (1/4) x 13 (1/2) x 7620 mm (300 inch) long

1шт.
