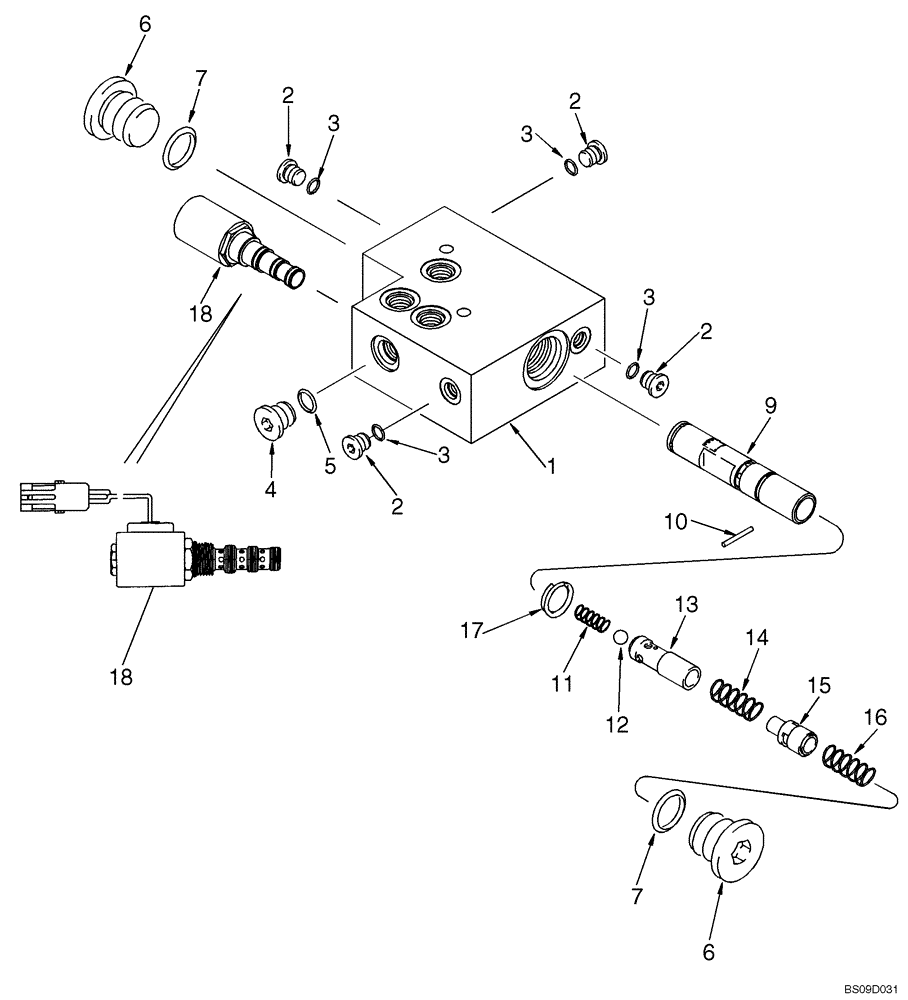

Запчасти Case 1150G (6-029A) - TRANSMISSION ASSEMBLY, HIGH/LOW RANGE VALVE (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 20

1шт.

130936A3

VALVE

ASSY., high/low range, Replaces: 130936A2, Includes: Ref. 1 - 20

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

2

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 3

4шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

4

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Incl Ref 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 238108A1

1шт.

6

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Incl. Ref 7

2шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of seal kit 238108A1

1шт.

189269A2

SPOOL

ASSY., clutch cutout, Includes: Ref. 9 - 17

1шт.

9

NSS

NOT SOLD SEPARAT

SPOOL sleeve

1шт.

10

37-1214

DOWEL,1/8" x 7/8"

dowel, 1/8 x 7/8 inch, hardened

1шт.

11

129700A1

SPRING

check valve ball

1шт.

12

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24

1шт.

13

189267A1

SPOOL

track modulation

1шт.

14

189259A1

SPRING

spool return

1шт.

15

189268A1

PISTON

track modulation

1шт.

16

121866A1

SPRING

track modulation, outer

1шт.

17

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93, spring and piston, Replaces: 121493A2

1шт.

18

141943A2

VALVE

SPOOL ASSY., magnetic detent, Includes: Ref. 19

1шт.

19

187850C1

SEAL KIT

KIT replacement, includes 4 O-rings and 3 backup rings for magnetic detent spool, Ref. 9 above, not shown

1шт.

Part of seal kit 238108A1

1шт.

20

197767A1

WASHER

inlet, valve rework flow control, used to change orifice diameter in valve body inlet port from 6.35 mm to 4.00 mm, used in 130936A3 valve assembly only, if used, not shown

1шт.

238108A1

SEAL KIT

KIT transmission, high/low range valve, Includes: Ref. 3, 5, 7, 19, also includes 238-6112 O-ring, Ref. 14 on Fig. 6-031A

1шт.

Part of seal kit 238108A1

1шт.
