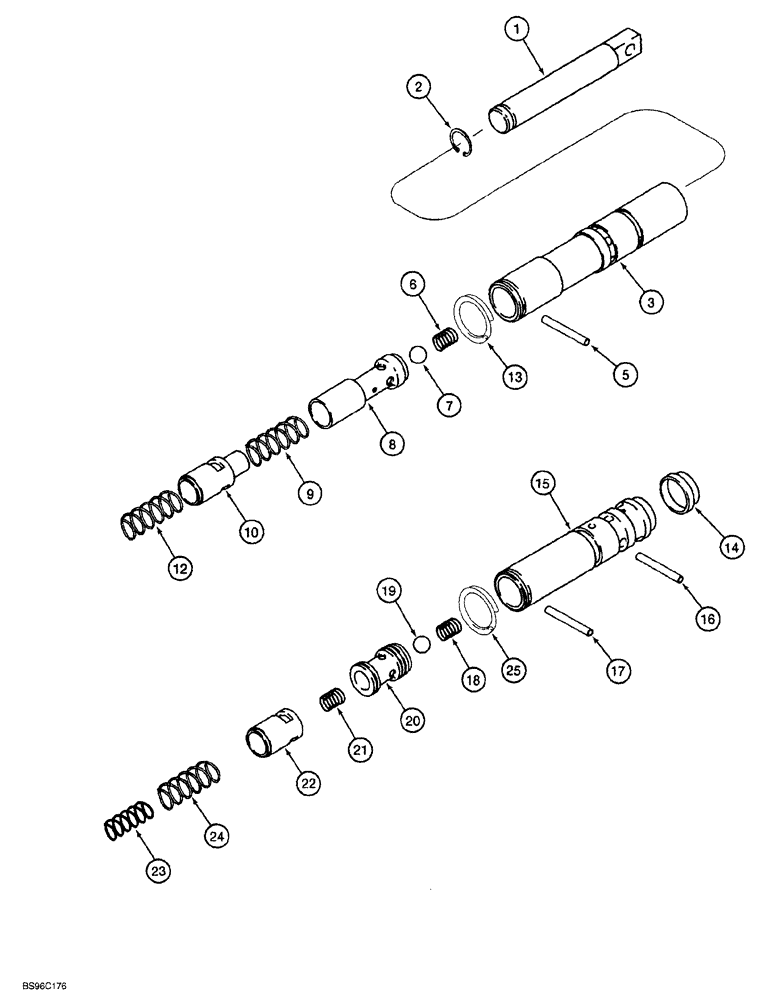

Запчасти Case 1150G (6-028) - TRANSMISSION CONTROL VALVE ASSEMBLY, SPOOL ASSEMBLIES (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY, see Figures 6-010 - 6-031C and 7-002, Includes: 125588A4

1шт.

125588A4

VALVE

ASSY., transmission control, Includes: Ref. 1 - 25

1шт.

189265A2

SPOOL

ASSY., clutch cutout, with eye rod, Includes: Ref. 1 - 13

2шт.

1

138436A1

ROD

spool eye

1шт.

2

G107637

RING, SNAP

RING SNAP retaining, spool rod

1шт.

189269A2

SPOOL

ASSY., clutch cutout, without eye rod, Includes: Ref. 3 - 13

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE clutch cutout spool

1шт.

5

37-1214

DOWEL,1/8" x 7/8"

dowel, 1/8 x 7/8 inch, hardened, spring retaining spool end

1шт.

6

129700A1

SPRING

check valve ball

1шт.

7

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24

1шт.

8

189267A1

SPOOL

track modulation

1шт.

9

189259A1

SPRING

spool return

1шт.

10

189268A1

PISTON

track modulation

1шт.

12

121866A1

SPRING

track modulation, outer

1шт.

13

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No 93, spring and piston

1шт.

126430A3

SPOOL

ASSY., forward and reverse modulation, Includes: Ref. 14 - 25

1шт.

14

121494A1

STOP

spool

1шт.

15

126255A3

SLEEVE

modulation spool

1шт.

16

132923A1

PIN

retaining, 3.18 x 24 mm long, spool travel limiting

1шт.

17

37-1214

DOWEL,1/8" x 7/8"

dowel, 1/8 x 7/8 inch, hardened, spring retaining, spool end

1шт.

18

129700A1

SPRING

check valve ball

1шт.

19

211-1012

BALL,3/8" Dia

chrome alloy steel, 3/8 inch, grade 24

1шт.

20

126252A1

SPOOL

forward and reverse modulation

1шт.

21

127427A1

SPRING

spool return, forward/reverse reducer

1шт.

22

121492A1

PISTON

forward/reverse modulation

1шт.

23

121870A1

SPRING

forward/reverse modulation, inner

1шт.

24

121871A1

SPRING

forward/reverse modulation, outer

1шт.

25

102-1393

SNAP RING,#93, Ext, Spiral

external spiral retaining, No. 93, spring and piston

1шт.
