Запчасти Case 1150G (6-026) - TRANSMISSION CONTROL VALVE ASSEMBLY (03) - TRANSMISSION

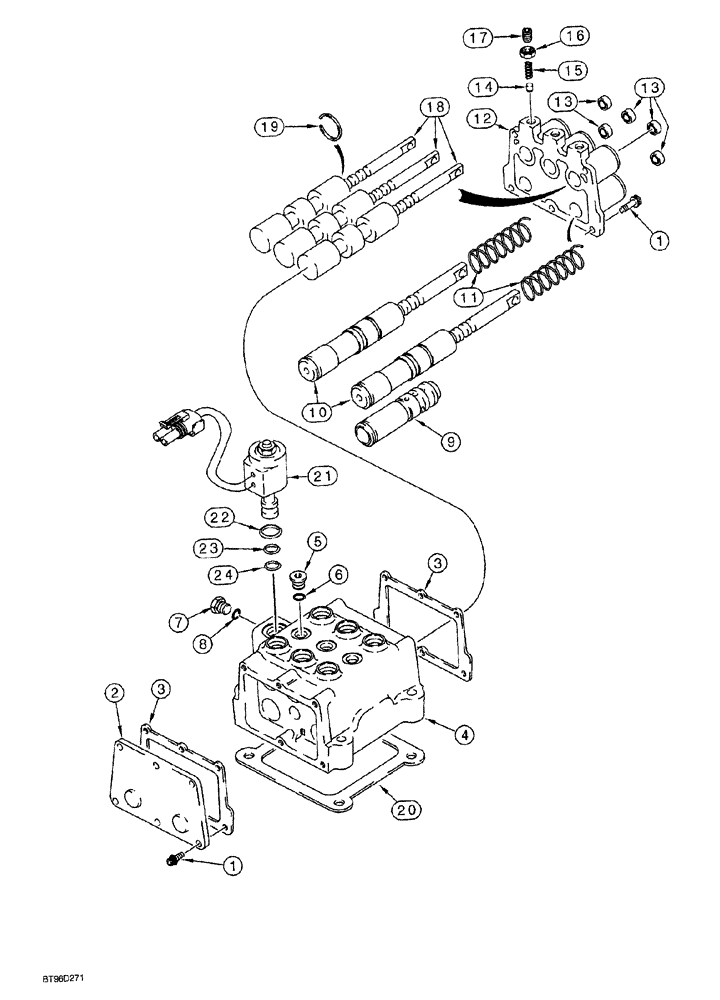

Схема запчастей Case 1150G - (6-026) - TRANSMISSION CONTROL VALVE ASSEMBLY (03) - TRANSMISSION
12
9
7
19
10
3
13
4
21
11
20
8
3
18
6
15
23
13
14
22
24
2
17
5
16
1
1

Артикул

Название

Примечание

Количество

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 24

1шт.

125588A4

VALVE

ASSY., transmission control, Includes: Ref. 1 - 24

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

external tooth lock, 1/4 NF x 5/8 inch

11шт.

2

R21384

COVER

rear

1шт.

3

35665

GASKET

cover

2шт.

Part of seal kit 238107A1

1шт.

4

NSS

NOT SOLD SEPARAT

BODY, control valve

1шт.

5

278548

PLUG,Hex, 7/16"-20 ORB

Incl Ref 6

3шт.

6

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

Part of seal kit 238107A1

1шт.

7

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 8

3шт.

8

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

9

126430A3

SPOOL

ASSY., forward/reverse modulation, see Figure 6-028

1шт.

10

189265A2

SPOOL

ASSY., clutch cutout, see Figure 6-028

2шт.

11

121865A1

SPRING

clutch cutout spool

2шт.

1542672C1

COVER

ASSY., front, Includes: Ref. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

COVER front

1шт.

13

G105700

OIL SEAL

oil

5шт.

Part of seal kit 238107A1

1шт.

14

71120

VALVE

PIN dowel

3шт.

15

1542824C1

SPRING

poppet

3шт.

16

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

3шт.

17

G104208

SET SCREW

special, 3/8 NC x 1/2 inch

3шт.

18

G107659

ROD

SPOOL ASSY., shift, Includes: Ref. 19

3шт.

19

G107637

RING, SNAP

RING SNAP retaining, shift spool

1шт.

20

1986527C1

GASKET

valve

1шт.

Part of seal kit 238107A1

1шт.

349297A1

SOLENOID VALVE

VALVE ASSY., 24 volt, Replaces: 130761A1, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE solenoid 24 volt

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of seal kit 238107A1

1шт.

23

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

Part of seal kit 238107A1

1шт.

24

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

Part of seal kit 238107A1

1шт.

238107A1

SEAL KIT

KIT transmission, control valve, Includes: Ref. 3, 6, 8, 13, 20, 22 - 24

1шт.

Выбрано товаров: 36
