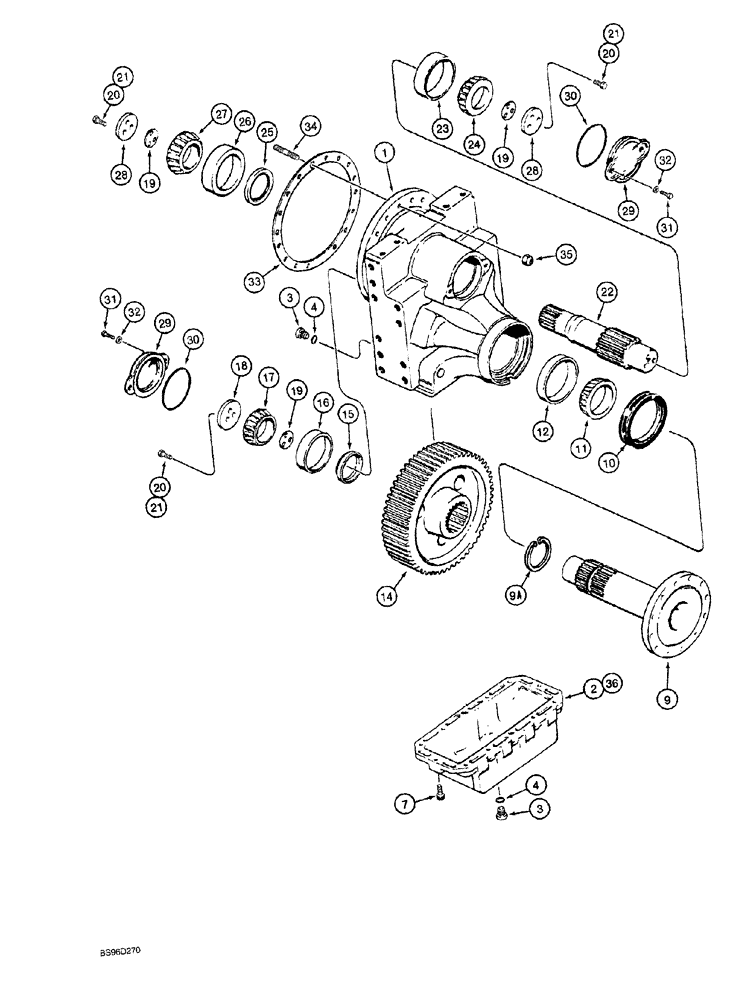

Запчасти Case 1150G (6-024) - TRANSMISSION ASSEMBLY, FINAL DRIVE (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 36

1шт.

G101538

DRIVE

ASSY., final, transmission, Includes: Ref. 1 - 32

2шт.

1

G101310

HOUSING

final drive assembly

1шт.

2

1348872C1

COVER

lower

1шт.

3

71100209

PLUG,Hex Soc, 3/4"-16 ORB

If used, Incl Ref 4

2шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

If used

1шт.

7

180-610

12 PT SCREW,Flg, 1/2" - 13 x 1 1/2", Gr 8

12 point flange, chemical coating, 1/2 NC x 1-1/2 inch, grade 8

12шт.

9

A51451

SHAFT

final drive

1шт.

9a

101-11393

SNAP RING,#393, 3.713, Ext

RING external retaining, No. 393

1шт.

10

G109655

SEAL

oil

1шт.

Part of final drive overhaul kit G101834

1шт.

11

L33736

ROLLER BEARING

tapered roller, outer

1шт.

Part of final drive overhaul kit G101834

1шт.

12

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

tapered roller bearing

1шт.

Part of final drive overhaul kit G101834

1шт.

14

G100294

GEAR

drive, final drive

1шт.

15

A50721

SPACER

SPACER inner

1шт.

16

160301R1

BEARING ASSY,133.35mm OD x 32.55mm W

CUP tapered roller bearing, inner

1шт.

Part of final drive overhaul kit G101834

1шт.

17

1997115C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

tapered roller, shaft, inner

1шт.

Part of final drive overhaul kit G101834

1шт.

18

1997098C1

PLATE

bearing retaining

1шт.

19

G101997

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of final drive overhaul kit G101834

1шт.

19

G101998

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of final drive overhaul kit G101834

1шт.

19

G101999

SHIM,.020" Thk

(0.508 mm)

1шт.

20

110-14

LOCK BOLT,Locking, 9/16"-18 x 1 1/4", G8, Full Th

9шт.

21

B17423

LOCTITE

No. 271, 2 oz. (50 ml)

1шт.

22

G109013

SHAFT

pinion, final drive

1шт.

23

107580R1

TAPERED BEARING,2.375" ID x 5.375" OD x 1.8125"

CUP tapered roller bearing, pinion shaft, outer, Replaces: L30821

1шт.

Part of final drive overhaul kit G101834

1шт.

24

1997116C1

TAPERED BEARING,82.575 mm ID x 39.738 mm

tapered roller, pinion shaft, outer

1шт.

Part of final drive overhaul kit G101834

1шт.

25

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

oil, pinion shaft

1шт.

Part of final drive overhaul kit G101834

1шт.

26

921683C1

BEARING CUP,5.7087" OD x 1.6535"

tapered roller bearing, pinion shaft, inner

1шт.

Part of final drive overhaul kit G101834

1шт.

27

921684C1

BEARING ASSY,2.9528" ID x 5.7087" OD x 2.0079"

tapered roller, inner, pinion shaft, Replaces: A50714

1шт.

Part of final drive overhaul kit G101834

1шт.

28

1997098C1

PLATE

bearing retaining, pinion shaft

2шт.

Part of final drive overhaul kit G101834

1шт.

29

G102521

COVER

pinion shaft and final drive shaft

2шт.

30

238-5252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

2шт.

Part of final drive overhaul kit G101834

1шт.

31

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

32

G49404

WASHER

hardened, special

4шт.

33

A50726

SHIM,.005" Thk

(0.127 mm)

1шт.

Part of seal kit 238104A1

1шт.

Part of final drive overhaul kit G101834

1шт.

33

A50725

SHIM,.007" Thk

(0.178 mm)

1шт.

Part of seal kit 238104A1

1шт.

Part of final drive overhaul kit G101834

1шт.

33

1997090C1

SHIM

0.508 mm (.02 inch) thick

1шт.

Part of seal kit 238104A1

1шт.

Part of final drive overhaul kit G101834

1шт.

34

A50592

STUD

5/8 NC x 2 - 3/4 inch

34шт.

35

232-41110

NUT,5/8"-11, GC

34шт.

36

B17501

LOCTITE

SEALANT, Gasket Maker No. 515, 6 ml tube

1шт.

G101834

DRIVE

KIT overhaul, final, for one side only, Includes: Ref. 10 - 12, 16, 17, 19, 23 - 28, 30, 33, plus (2) G102141 copper gaskets, (2) R21743 shims and (1) 391-825 No. 20 x 70 wire not used in this application

1шт.

238104A1

SEAL KIT

KIT transmission, Includes: Ref. 33, plus additional seals on Figures 6-010 - 6-018, 6-024, 6-031A and 7-002

1шт.
