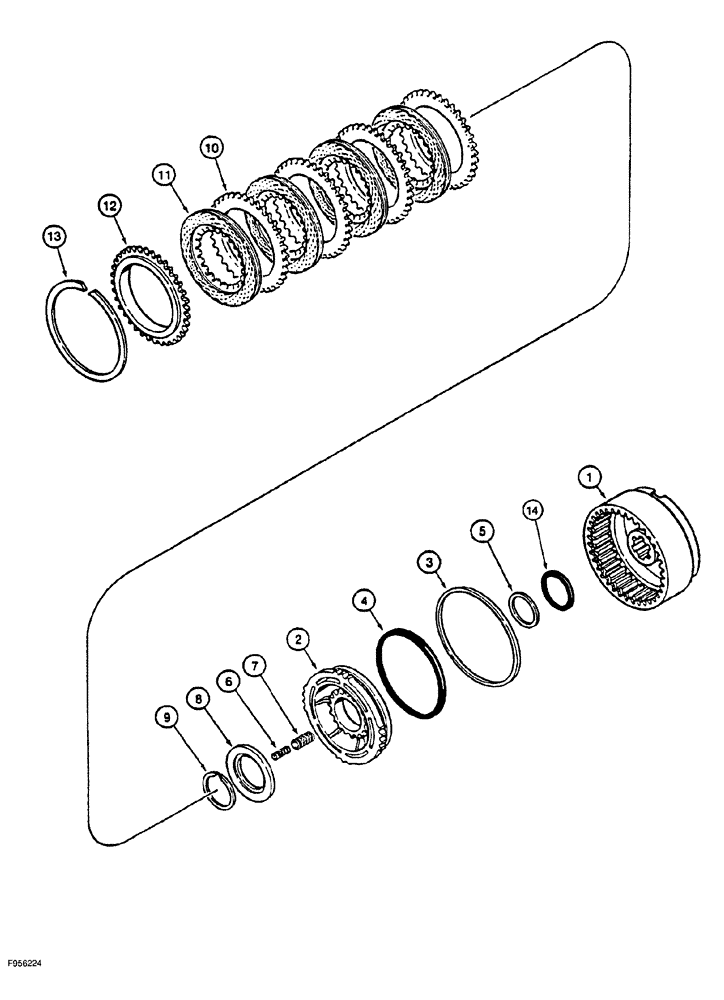

Запчасти Case 1150G (6-020) - TRANSMISSION ASSEMBLY, CLUTCHES (03) - TRANSMISSION

139993A1

TRANSMISSION

ASSY., see Figures 6-010 - 6-031C and 7-002, Includes: Ref. 1 - 14

1шт.

G102377

CLUTCH

ASSY., transmission, Includes: Ref. 1 - 14

8шт.

1

1997112C3

DRUM

HOUSING clutch

1шт.

2

1997120C1

PISTON

clutch

1шт.

3

G103486

SEALING RING

SEALRING SEAL piston, large

1шт.

Part of seal kit 238105A1

1шт.

4

238-7165

O-RING,0.103" Thk x 6.487" ID, -165, Cl 7, 75 Duro

1шт.

Part of seal kit 238105A1

1шт.

5

1997117C1

SEALING RING

RING, small

1шт.

Part of seal kit 238105A1

1шт.

6

A51826

SPRING

piston return, inner

18шт.

7

A51825

SPRING

piston return, outer

18шт.

8

R11016

RETAINER

clutch spring

1шт.

9

A27233

RING

snap

1шт.

G102416

KIT

clutch plates, kit no longer available, order Ref. 10, 11

1шт.

10

G101711

PLATE

DISC steel, external teeth

4шт.

11

G102354

PLATE

DISC friction, internal teeth

4шт.

12

G103391

PLATE

clutch backing, has part number on outer side

1шт.

13

1997118C1

RING

snap

1шт.

14

238-5036

O-RING,0.07" Thk x 2.364" ID, -36, Cl 5, 75 Duro

special, 3 ID x 1/16 inch wide

1шт.

Part of seal kit 238105A1

1шт.

238105A1

SEAL KIT

KIT transmission, clutches, Includes: Ref. 3 - 5, 14, plus additional seals on Figures 6-014 and 6-016

1шт.
